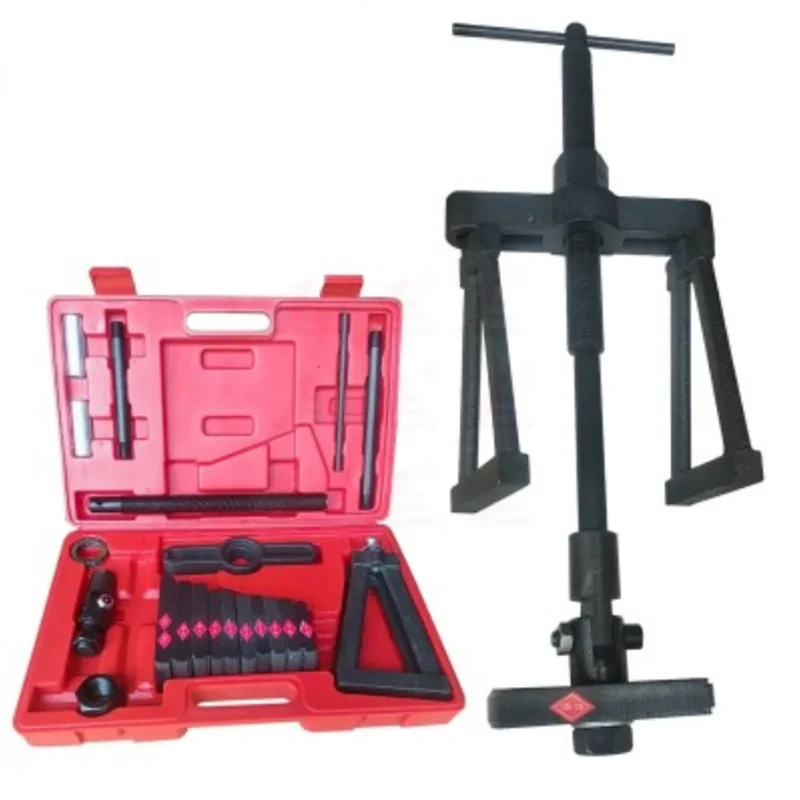

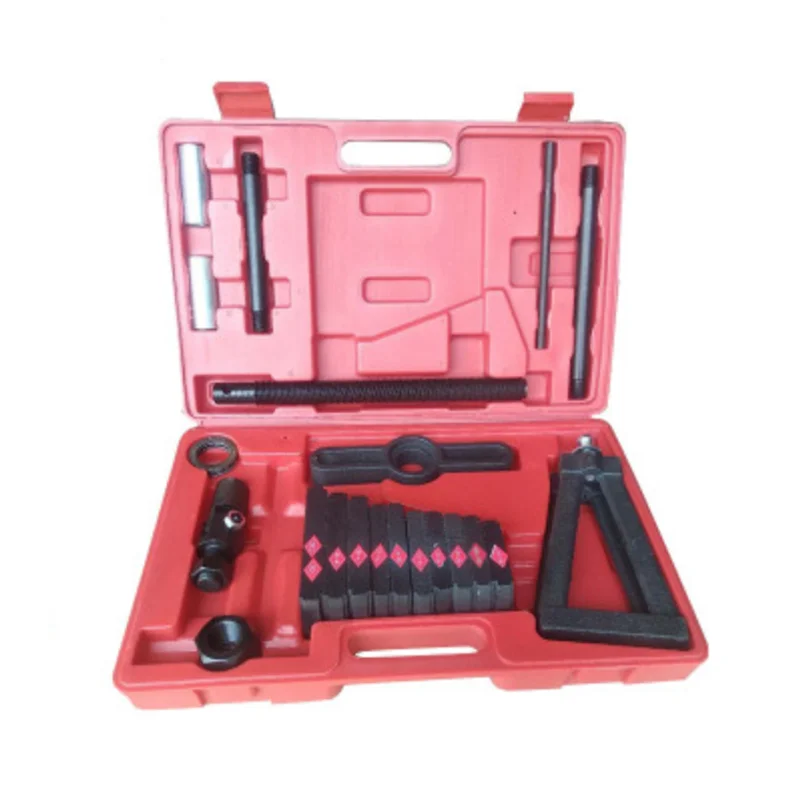

Automobile assembly disassembly tool Manual cylinder liner puller and agricultural vehicle comprehensive cylinder puller

Instructions for use:

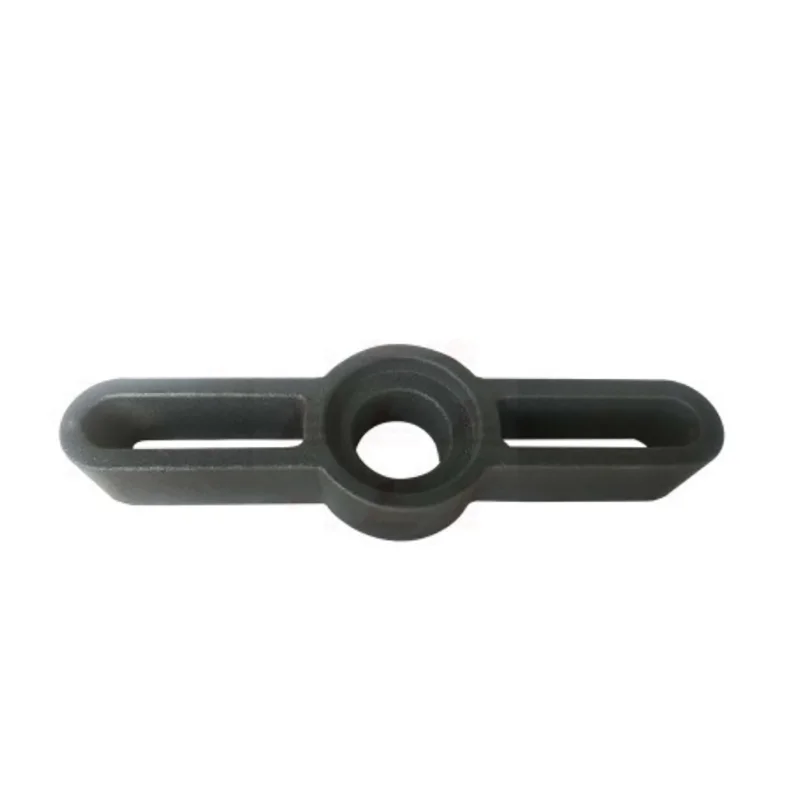

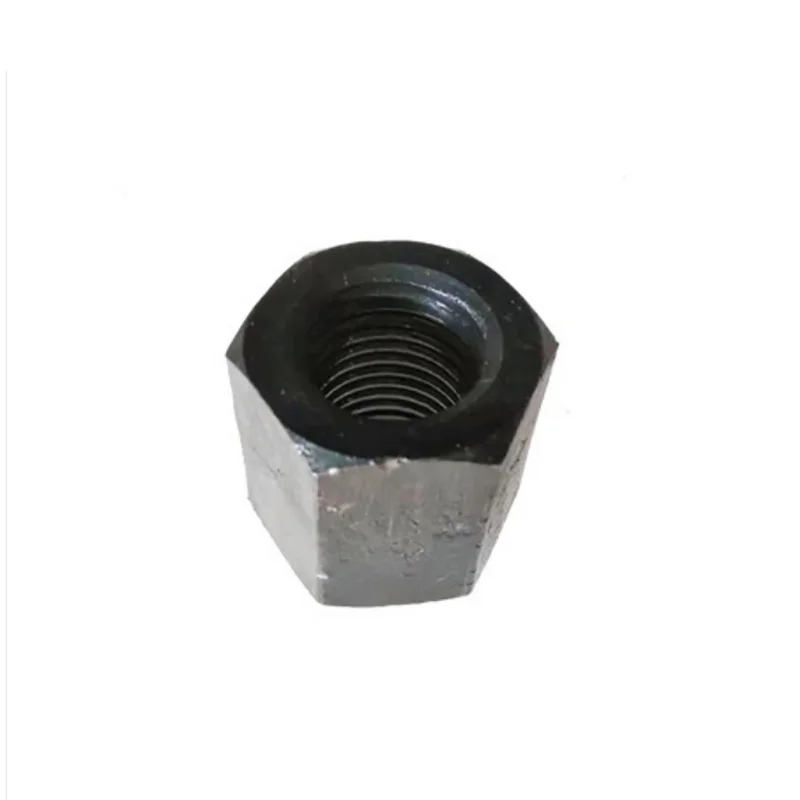

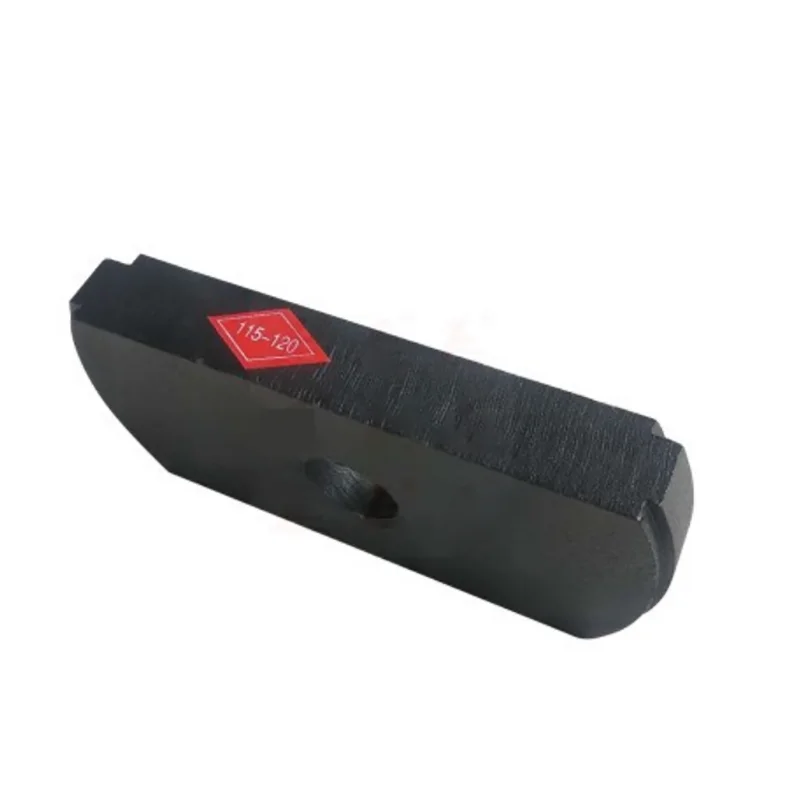

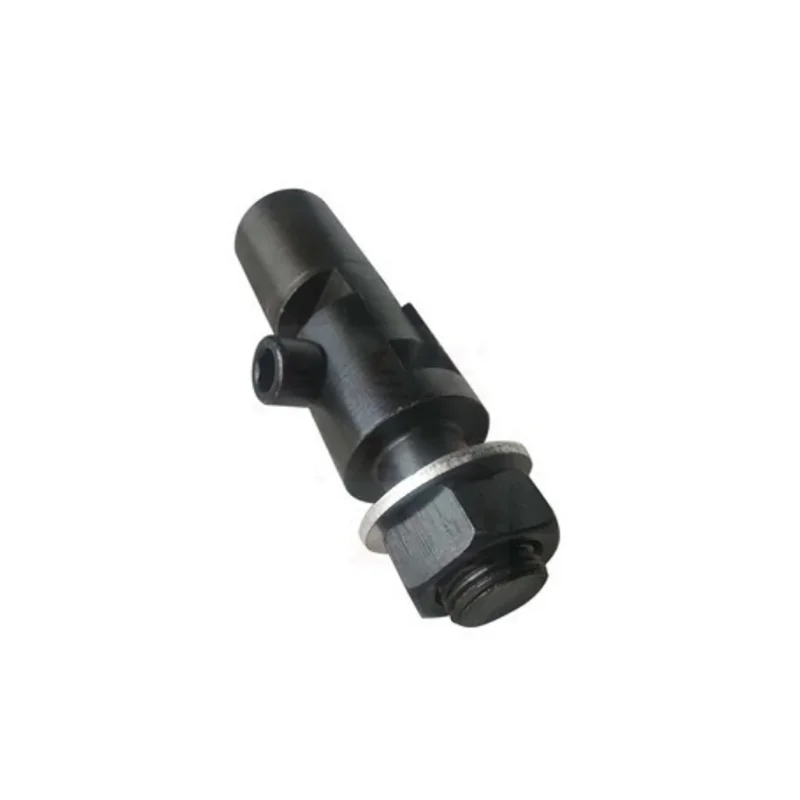

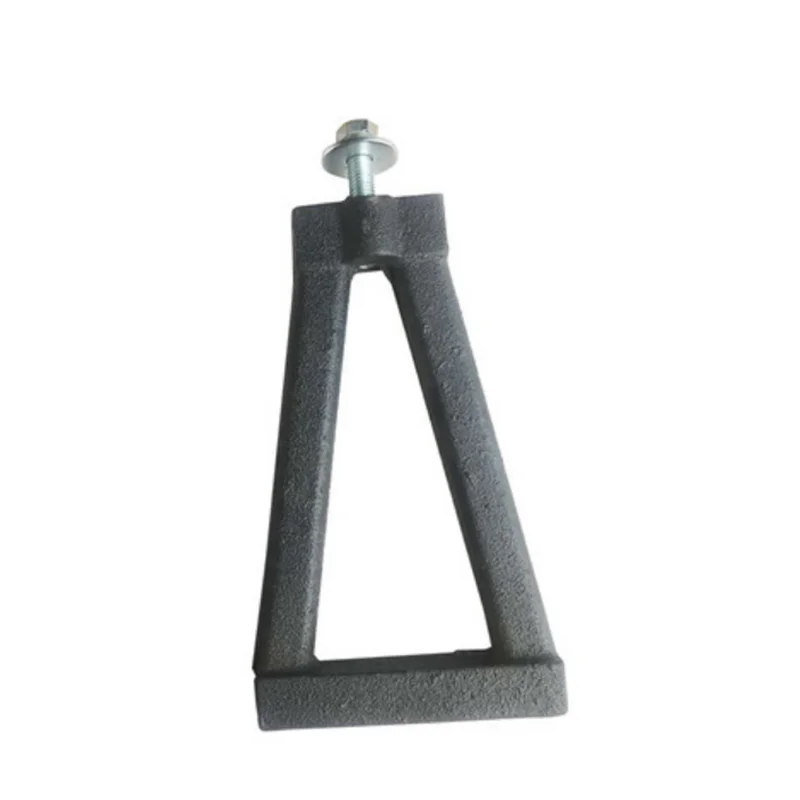

Place the two brackets on the left and right sides of the cylinder liner, then place the beam on the bracket column, place it on the gasket, tighten the bracket screws, select the appropriate cylinder diameter pull block, install it on the steering knuckle Tighten the nut. First, take out the long extension rod and screw one end into the lower end hole of the main screw and the other end into the knuckle hole. Twist the knuckle, the straight side of the screw and the pull block parallel to the main screw at a right angle. The lead screw penetrates the cylinder liner, adjust the position of the handle after the end, lock the inner ring of the handle into the cylinder liner, turn the main nut wrench to slowly pull out the engine cylinder liner, hard.

When pressing in, remove the bracket and place the beam on the cylinder liner. Install the tension block on the steering knuckle. Tighten the nut. The position of the pulling block is close to the lower end of the cylinder barrel. Hook the body and turn the main screw nut wrench to use slowly, so that the lower end of the beam is pressed into the engine cylinder liner and tightened.

Precaution:

If pulling or squeezing occurs, please rotate the main screw nut wrench, the tension block and cylinder sleeve will slide and follow the rotation phenomenon, you can put the barge in the upper hole of the main screw head, and hold the screw with your hand to stop the heel. If the machine is long Time does not repair, please use a hammer to gently knock out the cylinder liner.

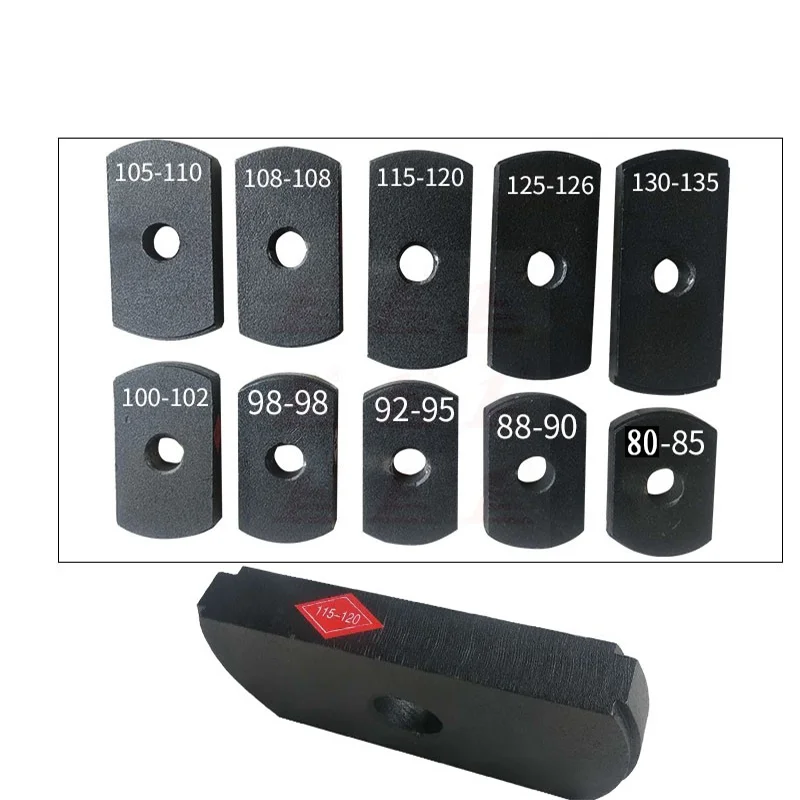

Note: For customers who purchase compression blocks, please leave a message indicating the size
