Camshaft Timing Tool TDC Locating Pin Engine Tools For Detroit Diesel DD15 DD16

Description

DESCRIPTION

• Great Compatibility: Works on all years of Detroit Diesel DD15 DD16 EPA07 EPA10. (TDC Locating Pin / Engine Brake Adjustment Tools and High Pressure Fuel Line Socket can be used on DD13 Engines)

• Upgrade Design: Replace W470589042300 / W470589022300 / J-46392 or W904589046300 / W470589104000 / W470589001500 / W47058090900 and work in an easier way to save your time and money.

• Superior Quality: Premium grade heavy duty soild steel structure and black non-slip PVC coated handle, durability and anti-corrosion. Ultra-precise design meets the requirement of high precision and hardness and a much longer service life.




DD13, DD15 & DD16 ENGINE BRAKE/ JAKE BRAKE LASH ADJUSTMENT STEPS

1. Set the lash on all the exhaust adjusting screws first (all the adjusting screws in direct contact with the exhaust valves).

2. Rotate the engine until a given cylinder is at maximum intake lift. When this is reached, the brake lash can be set on this cylinder.

3. When the engine brake rocker arm is in contact with the exhaust valve, set the lash between the engine brake rocker arm adjusting screw and the actuator piston stem.

a. DD15 & DD16 engines built before HDE0077481 use Engine Brake Adjustment tool W470589022300; set the lash to 4.1 mm (0.1614 in.).

b. DD 15 & DD16 engines built starting with HDE0077481 use Engine Brake Adjustment tool W470589042300; set the lash to 4.6 mm (0.1811 in.).

c. DD13 engines built before HDE0079072 use Engine Brake Adjustment Tool W470589022300; set the lash to 4.1 mm (0.1614 in.).

d. DD13 engines built starting with HDE0079072 use Engine Brake Adjustment tool W470589042300; set the lash to 4.6 mm (0.1811 in.).

4. Lash the engine brakes in the following firing order: 1, 5, 3, 6, 2, and 4.

5. Torque the locknut valve adjusting screw to 50 N·m (37 lb·ft).

6. Install the rocker cover.

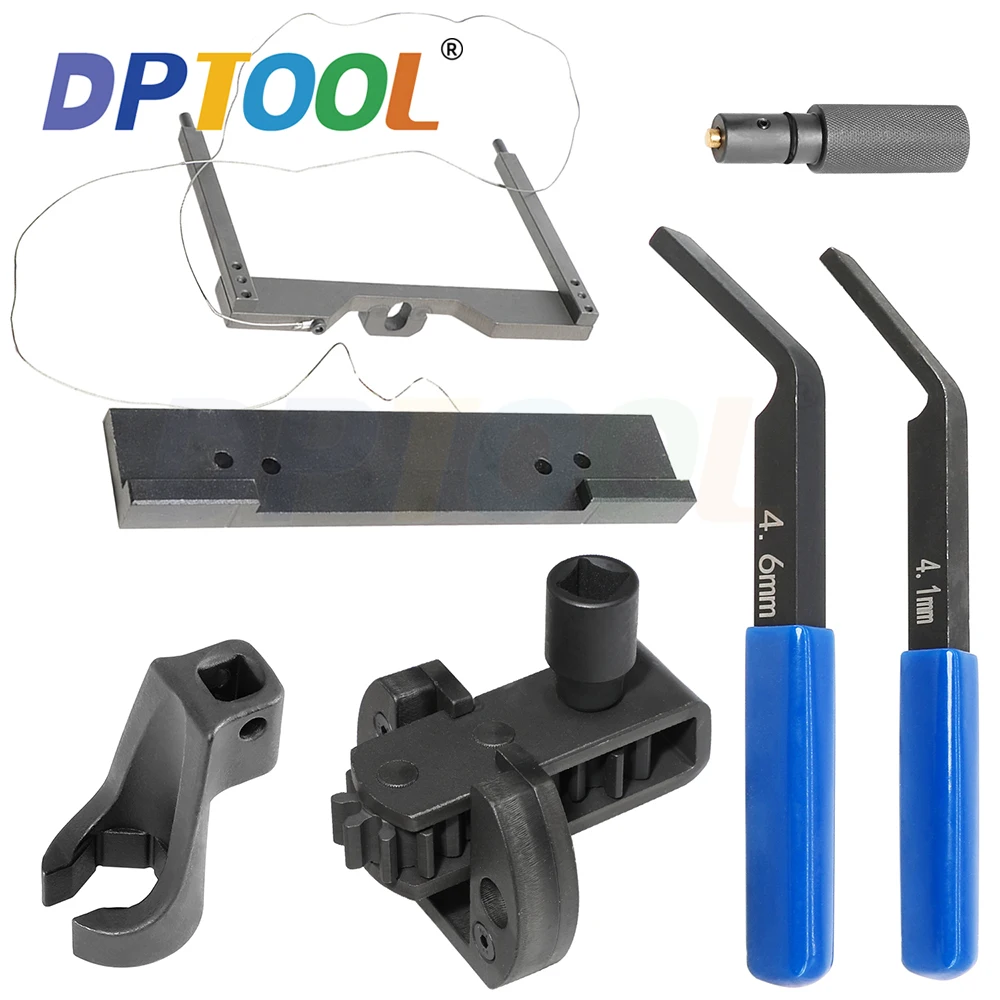

Includes 6 Tools(Set of 7)

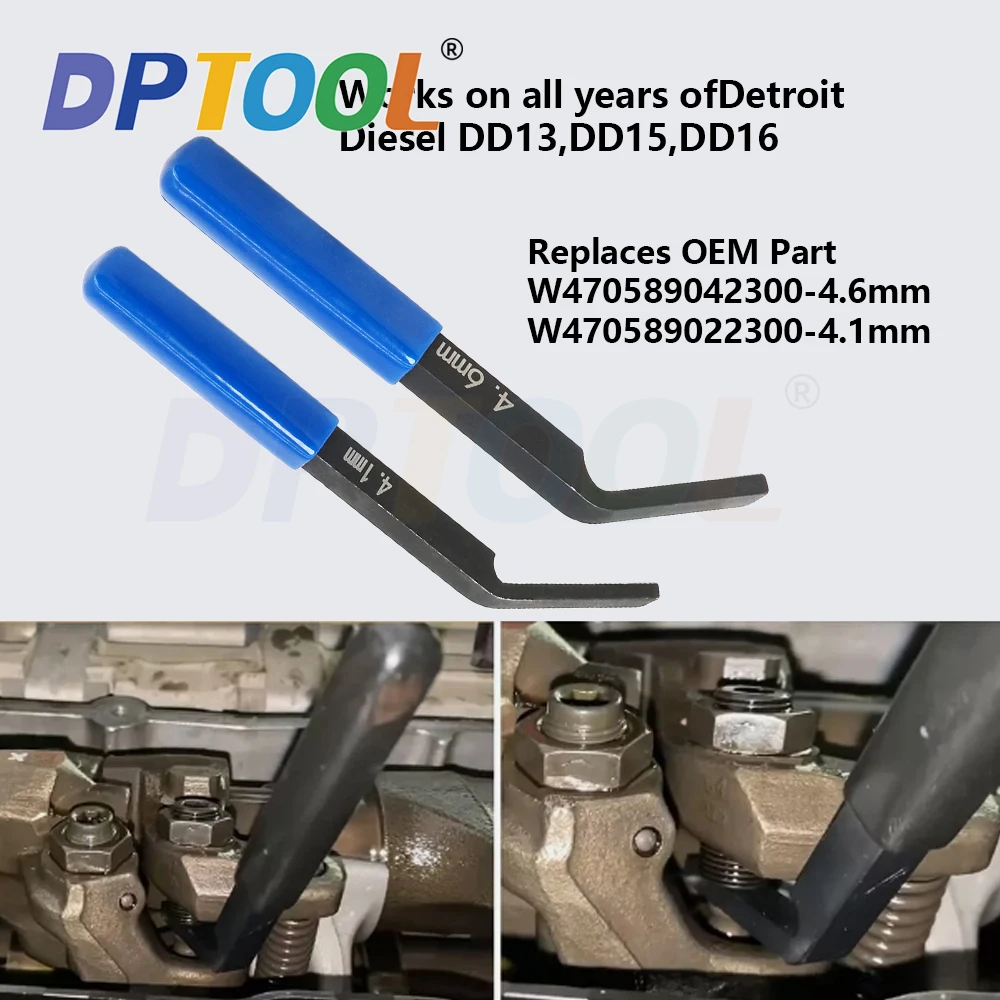

• 1- Engine Brake Adjustment Tool 4.6MM

• 1- Engine Brake Adjustment Tool 4.1MM

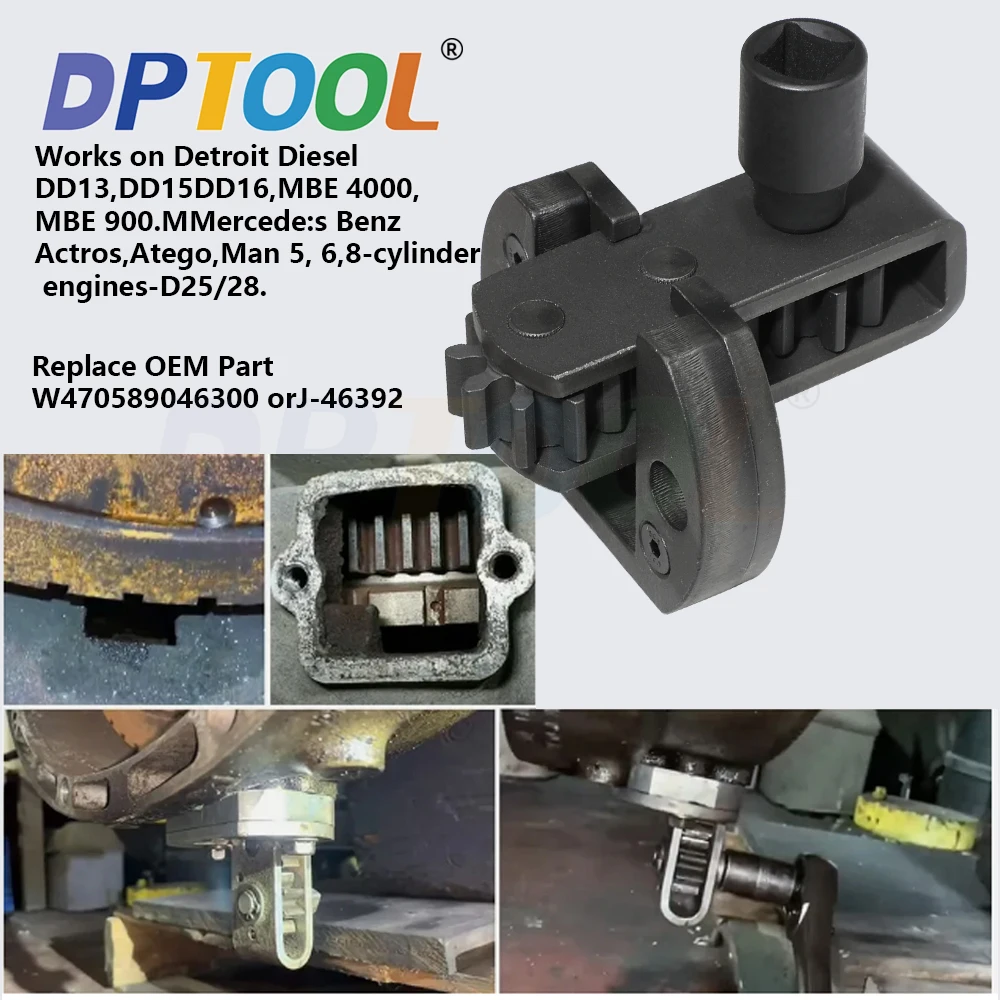

• 1- Engine Barring Tool (Turning tool)

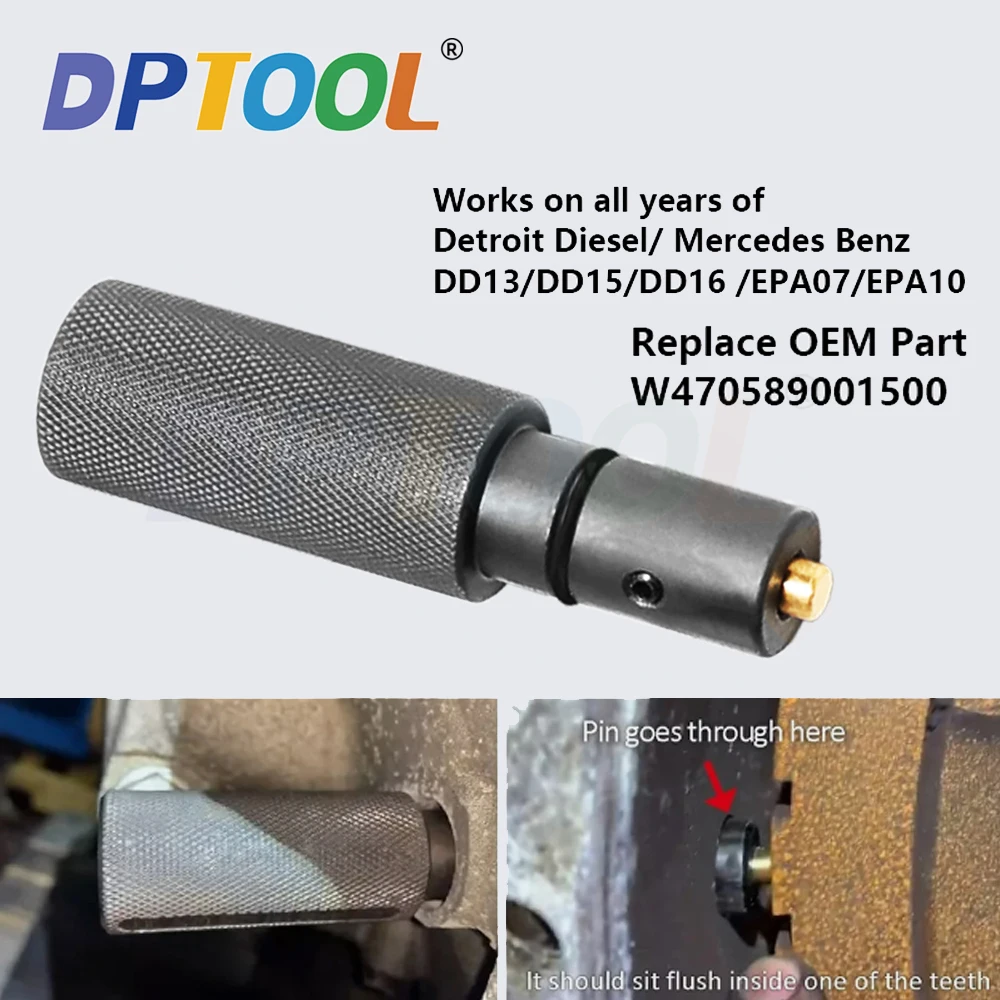

• 1- TDC Locating Pin

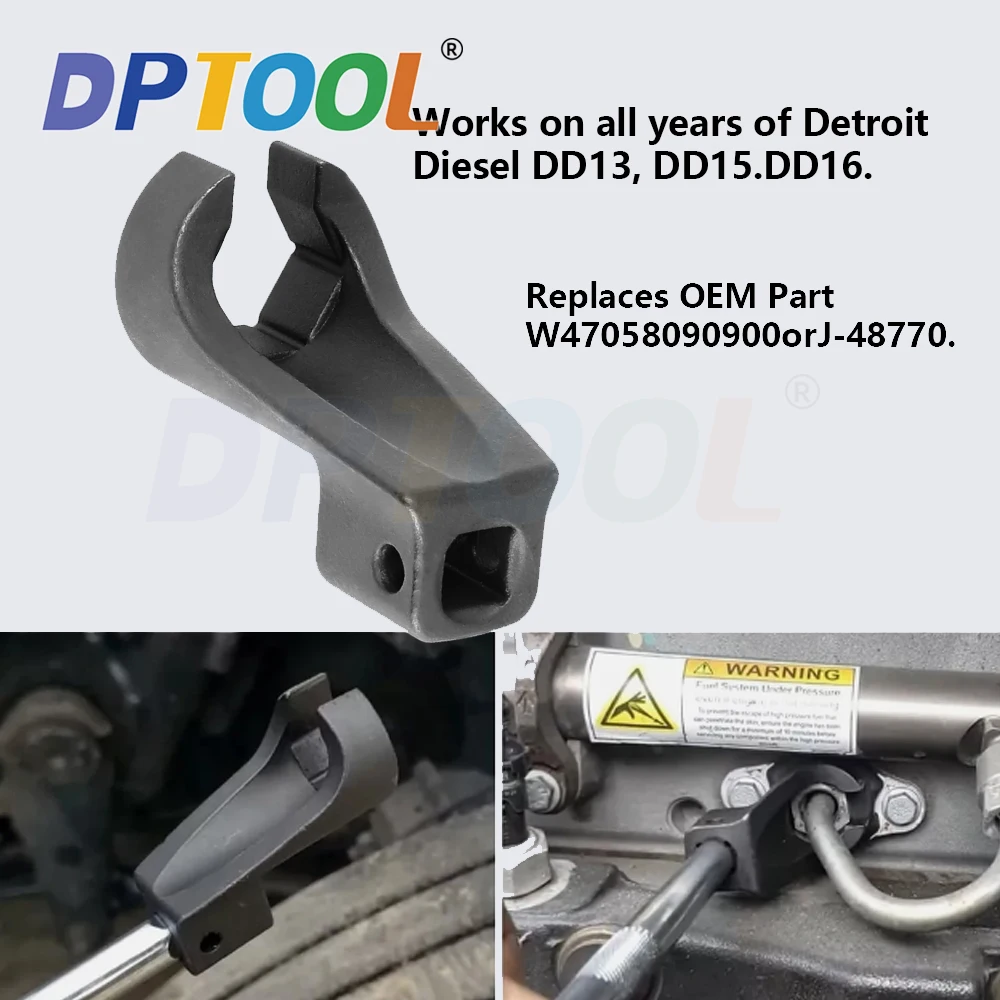

• 1- High Pressure Fuel Line Socket

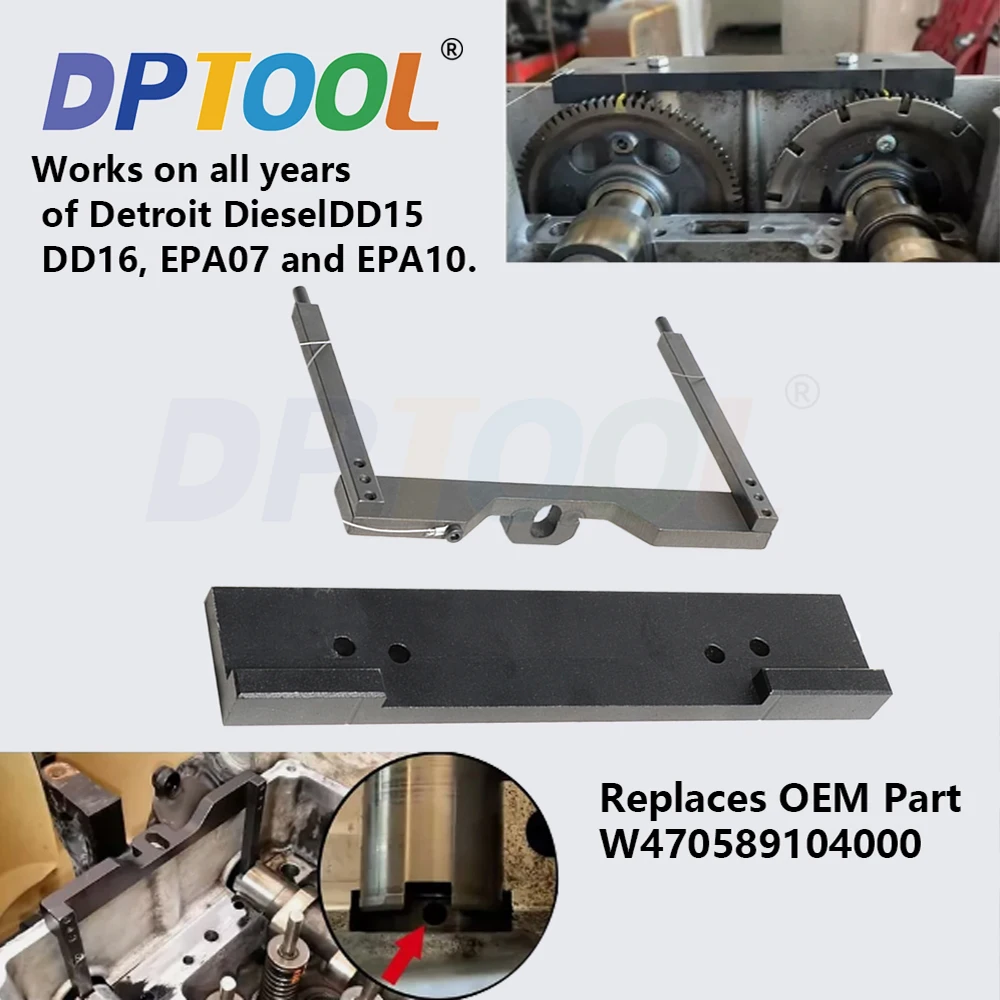

• A set of Camshaft Timing Tools.
