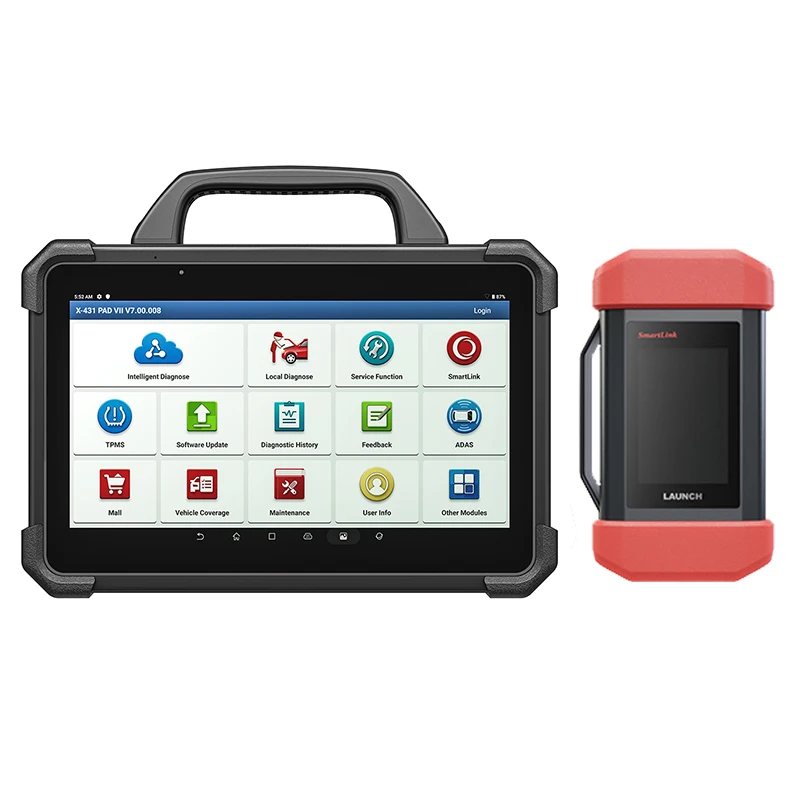

LAUNCH X431 PADVII

Top OE-Level Professional Diagnostic and ECU Online Programming Tool

Selling Points

1. All-in-One Functions: All System Diagnosis + Full Reset Services + Active Test + ECU Coding + Online Programming etc

2. ECU Online Programming via SmartLink used as J2534 Programming for 21 Car Brands.

3. Topology Module Mapping Support

4. VAG Guided Functions For VW, Audi, Skoda, Seat.

5. Two Years Free Update. It will not be locked after 2 years, local diagnostic software will work for a lifetime.

6. Five Years Warranty for Quality Problems + Lifetime Tech Support.

7. Wide Protocols Support: J2534, RP1210, D-PDU, CAN, CANFD, DoIP etc.

8. 99.99% Vehicle Coverage for U.S., Asian and European markets over 110 brands.

9. 22 Kinds of Languages Support.

10. No IP limit, You can use it all around the world.

11. Worked with ADAS, Heavy Duty Software, X-PROG3 Key Programmer, TSGUN TPMS Tool, VSP-600 Video-scope, BST360 Battery Tester etc. Contact us if you need these expanding tools.

12. X-431 FIX Available to buy.

Detailed Information About X431 PADVII

1. ECU Online Programming & Coding

This diagnostic tool comes with SmartLink CVCI box as a pass-through tool to connect with OEM software for effective J2534 ECU programming, to replace the existing software/firmware in the ECU, program new ECUs, and fix software-controlled driving performance and emission issues. ECU Coding for Component Matching after replacement, or re-flashing modules to active features / deactivate hidden features, without use of often very expensive factory automotive scan tools.

Online Programming Car Brands: Mercedes-Benz, BMW, BMW Brilliance, Mini, VW, Audi, Jaguar, Land Rover, Porsche，Shanghai Volkswagen, FAW-Volkswagen ，Skoda,  Seat, Renault, Nissan, Subaru，Hyundai,  Kia, GAC Trumpchi ，Cherry, Exeed.

（Note: Online Programming is not available in Spain and Portugal, and Only for Mercedes-Benz and BMW in USA, Canada and Mexico)

2. All System Diagnosis

This LAUNCH diagnostic scanner can establish a data link to all systems and subsystems of the vehicle being serviced to:

-Retrieve ECU information of the tested control units including unit type, version numbers, and other specifications, etc.

-Read & erase DTCs to locate problem areas and clear the codes.

-View Live Data of each parameter item.

The following is a list of modern vehicle systems that this scan tool can get access to:

-Engines / Auto Transmission / Airbags / Immobilizer / Key Coding / ABS / Cruise Control / Instruments / Self Leveling Suspension systems

-Seats / Doors / Gateway / Steering Angle / Air Suspension / Body Systems / Electronic Power Steering & Motor Assisted / Power Steering / Tyre Pressure / Rain Sensors / 4WD System

-Stabilizer / Intelligent Parking Assist/Door Motors / Audio Systems / Air Conditioning / Tiptronic / Anti Theft / Soft Top / Headlamp Leveling / Central Locking / Automatic Clutch / DPF Reset

-Electric Windows / Plip Programming / Heated Rear Window / Xenon Headlights / Wash Wipe / Fuel Burning Heater / Transfer Box / Seat Memory / Oil Life Service Reset / Sliding Doors / Electronic Throttle

-Navigation System / Rollover Sensor / Cruise Control / Multi Function Steering Wheel / Aux Heating / Electronic Parking Brake / Clutch Electronics … and more.

This comprehensive scanning process is able to locate the faulty systems and retrieve the DTCs related easily. So you can work on all parts of the vehicle systems to enhance the performance, save energy, reduce emissions, and everything else.

3. Full Special Maintenance Services

Oil Reset, Injector Coding, Brake Reset, SAS Reset, BMS Service, ABS Bleeding, Throttle Matching, TPMS Reset, DPF Reg, Gear Learning, AFS Reset, EGR Adaption, Gearbox, Sunroof, SUS Reset, Windows Calibration, Seats Calibration, Language Change, A/F Reset, Coolant Bleed, Transport Mode, Adblue Reset, NOx Sensor Reset NOx, Stop/Start Reset, Headlamp Fitting, Seat Matching, Door & Window Initialization Study, Air Suspension Matching, Multimedia Video Reset, Cluster Reset, Immobilizer Service, Tire Change, and more.

Component Matching: Rematch ECU (control module unit) after the replacement for VW / Audi / Skoda / Seat / BMW / Chrysler / GM / Ford / Opel / Mazda / Fiat / Honda / Nissan / Hyundai / Kia / Subaru etc.

Power Balance: Identify the less productive cylinder for Chrysler / GM / Ford.

Programmable Module Installation (PMI): Ensure the correct software/calibration and configuration data are loaded onto the new module after replacement for Ford / Mazda.

Personalization: Compatible with BMW / Porsche / Toyota / Subaru.

Online Calibration: For some car systems’ calibration. Compatible with VW / Audi / Skoda / Seat.

Online Account Login Service: Access to the login codes for coding, matching, and basic settings of all available systems.

OnlineParameterization… and many more are coming soon; expanding regularly.

4. Active Test

With this diagnostic tool’s Active Test, you can output the command into the ECU in order to turn on/off actuators, to find faults in the subsystems of your car effortlessly, without using the vehicle’s control:

[ Turn on the radiator fan | Modulate the throttle | Open/close windows | Operate mirrors | Turn on/off the lights | Turn on/off the sound horn | Test door lock … ]

5. X-431 FIX Available to buy

X-431 FIX is a cooperation between Launch Comprehensive Diagnostic Equipment and European HaynesPro® company to provide professional maintenance guidelines for passenger cars, light commercial vehicles and trucks, and to use the maintenance data database function developed by maintenance technicians to quickly and accurately perform vehicle maintenance diagnosis .

6. Supported Languages

English, Italian, German, Japanese, Russian, French, Spanish, Portuguese, Polish, Turkey, Dutch, Greek,Hungarian, Arabic, Denish, Korean, Farsi, Romanian, Serbian, Finish, Swedish, Czech.

7. Car Brands Coverage

USA: Compatible with USA Ford/ Lincoln, GM/ Buick/ Cadillac/ Chevrolet, Chrysler/ Dodge/ Jeep etc

Asia: Compatible with Toyota/ Lexus, Honda/ Acura, Mazda, Subaru, Nissan/ Infiniti, Mitsubishi, Hyundai, Isuzu, Daihatsu, KIA, Daewoo, Suzuki, Proton, Tata, Mahindra, Ssangyong, Perodua, Maruti etc.

Europe: Compatible with Audi, Mercedes/ Maybach, BMW/ MINI/ Rolls Royce, VW/ Bentley/ Bugatti, Opel/ Vauxhall, Peugeot, Citroen, Volvo, Sprinter, Renault/ Dacia, Fiat/ Romeo/ Abarth/ Lancia, Rover, Landrover, Saab, Seat, Skoda, Smart, Maserati, Ferrari, Arston Martin, Porsche, Jaguar, VAZ,GAZ etc.

Australia: Compatible with AUST Holden, AUST Ford.

More Car models, you can check the software list below or visit this website: http://qcar.x431.com/qcar/#/pc/index?q=e30%3D

8. Product Specifications

Operating System：Android 9.0

Memory ：8GB

Storage Capacity：256GB

CPU：2.0GHz Octa-core optimized chipset

Battery Capacity：4x4680mAh

ScreenInch：13.3 inchTouch Screen

Screen Resolution ：1920*1080 pixels

Camera：Front-facing 8.0MP camera + Rear-facing 13.0MP camera

Wi-Fi：802.11a/b/g/n/ac (2.4GHz / 5GHz)

Bluetooth：Supported

Working temperature 0℃ ~ 50℃

Storage temperature -20℃ ~ 70℃

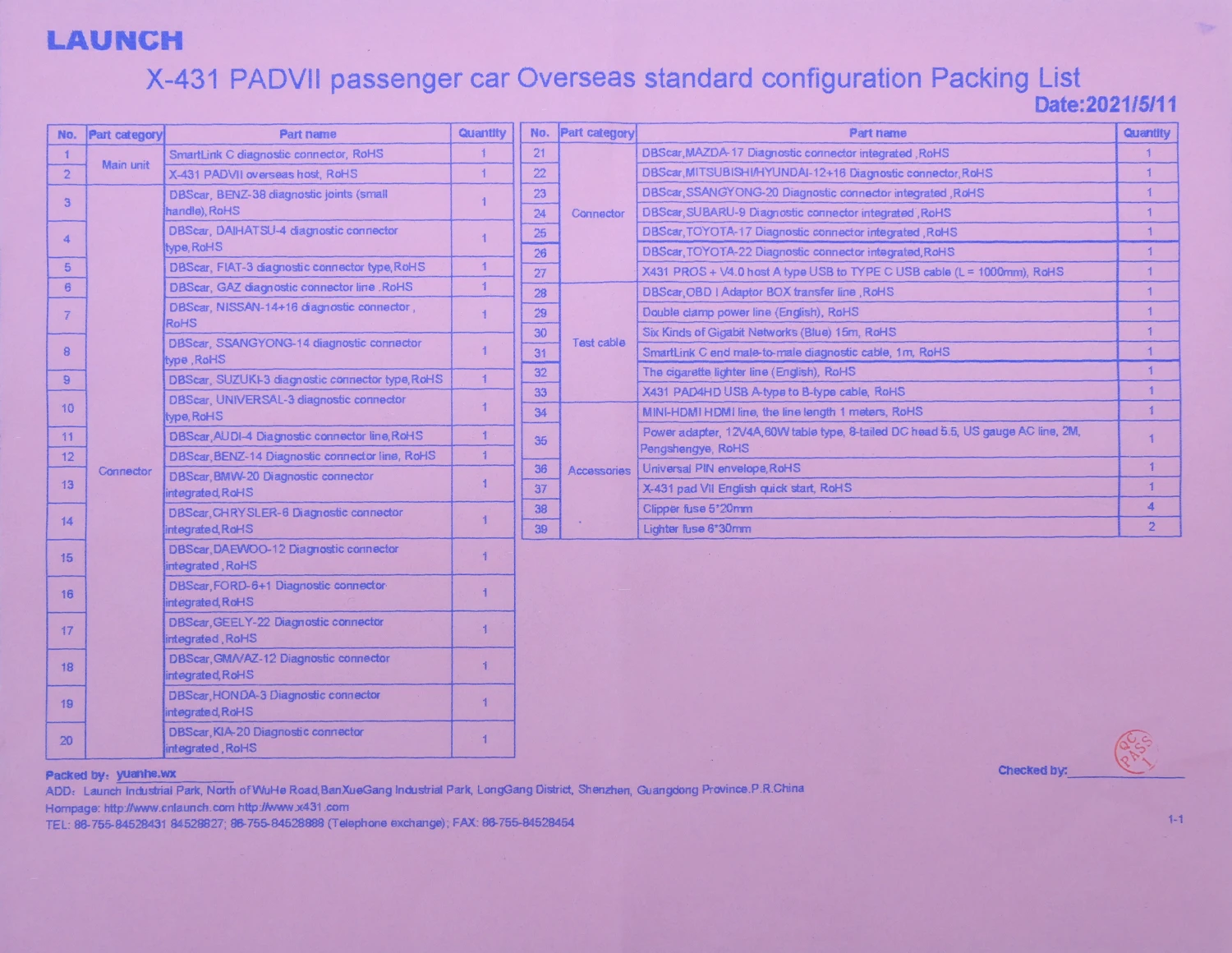

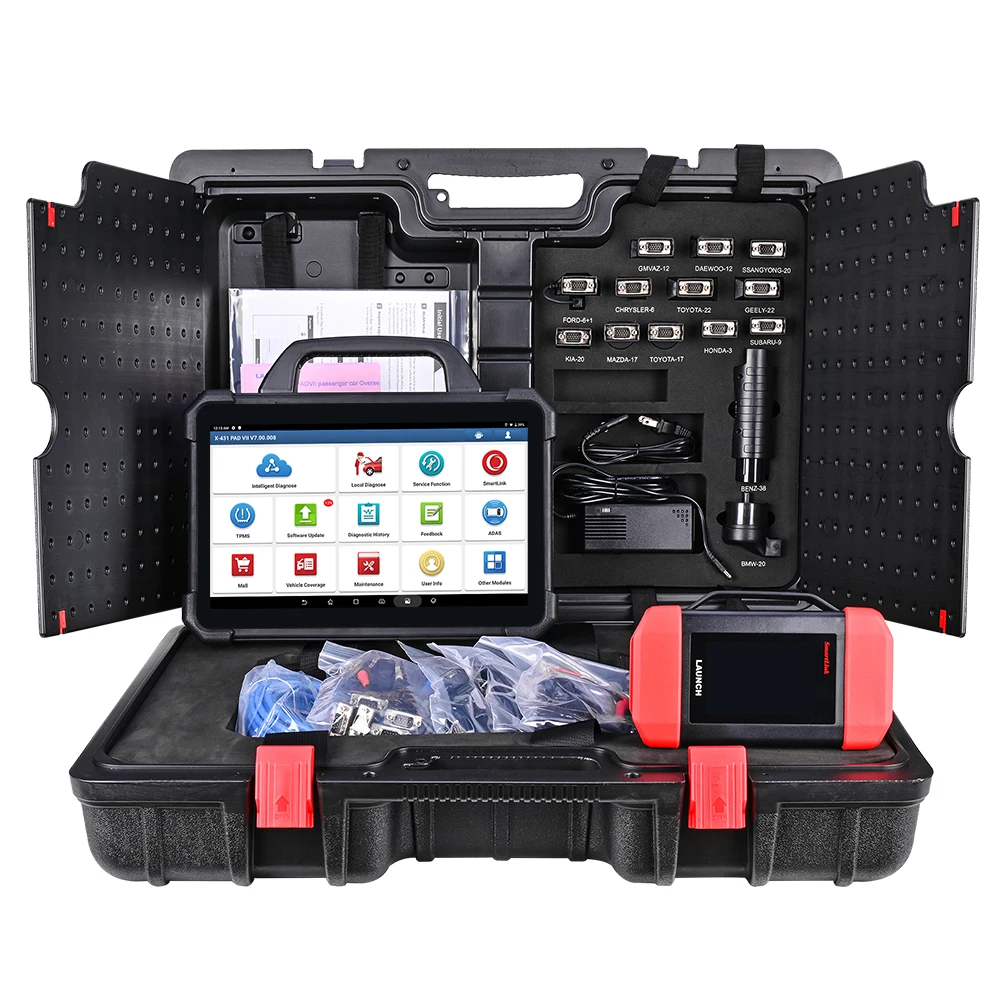

9. Package List
