Autel MaxiSys Ultra Automotive Diagnostic Tool Support 36+ Service Functions

Autel MaxiSys Ultra Automotive Diagnostic Tool Support 36+ Service Functions
Autel MaxiSys Ultra Automotive Diagnostic Tool Support 36+ Service Functions - Image 2
Autel MaxiSys Ultra Automotive Diagnostic Tool Support 36+ Service Functions - Image 3
Autel MaxiSys Ultra Automotive Diagnostic Tool Support 36+ Service Functions - Image 4
Autel MaxiSys Ultra Automotive Diagnostic Tool Support 36+ Service Functions - Image 5
Autel MaxiSys Ultra Automotive Diagnostic Tool Support 36+ Service Functions - Image 6
Rp111.168.763
In Stock
Add to wishlist
In Stock
Order on WhatsApp
  • Delivered today (order Mon-Fri before 12:00, delivery between 17:00 and 22:00)
  • Including shipping costs, sent by Otomaster.id
  • Pick up at a Otomaster.id collection point is possible
  • 30 days to change your mind and free returns
  • Day and night customer service
SKU: 1005008486786335
Category:

Description

  • Hign-concerned Chemical: None
  • Electronic: No
  • Item Weight: 14kg
  • Item Height: 6cm
  • Item Width: 14cm
  • Item Length: 15cm
  • External Testing Certification: ce
  • Voltage: 12V
  • Special Features: Bluetooth
  • Model Name: XN-SP358
  • Software Version: Autel MaxiSys Ultra
  • Hardware Version: Autel MaxiSys Ultra
  • Brand Name: Autel
  • Origin: Mainland China
  • Power (W): 8W
  • Item Type: Other
  • Material: Plastic
  • Electronic: No
  • Material Type: Plastic
  • Item Height: 6cm
  • Item Width: 14cm
  • Item Length: 15cm
  • External Testing Certification: ce
  • Voltage: 12V
  • Power: 8W








Main Features of Autel MaxiSys Ultra:

Updated version of MS908P/Elite/MS909/MS919;


D-PDU/SAE J2534/RP1210/DoIP/CAN FD protocols are supported;

Wider vehicle coverage for 99.99% cars’ makes in the market;

5-in-1 VCMI with functions of VCI, oscilloscope, waveform generator, multimeter, and CAN BUS tester;

Advanced Programming and Coding, ECU upgrading & downgrading, ECU module matching & replacement, etc.

36+ service functions to fix all car-related problems, no need to turn to other scan tool or gurus;



For each fault code, Ultra performs in-depth analysis and gives the OE data and processing suggestions.

OE-level Topology Module Tree, helping you view the vehicle’s crux much more intuitively;

Split-screen multi-application navigation with super fast running speed, greatly improving your work efficiency;

10+ highly advanced functions: Active Test/Guided Functions/Personalization/Modification/ etc.;


Automatic system and software updates with real-time push message notifications via internet.

Interactive Data Logging sessions enable direct contact with Autel Support for first-hand troubleshooting of diagnostic bugs and errors

Cloud-based Data Manager saves customer and vehicle records, scanner data and technician notes.

Multitasking designed for ideal management of workshop operations to keep all data files, customer info, and vehicle records well organized.





Autel MaxiSys Ultra Specifications:



Operating System

Android 7.0

Processor

for Samsung Exynos8895V octa-core Processor (2.3GHz Quad-core + 1.7GHz Quad-core A53)

Memory

4GB RAM & 256GB On-board Memory

Display

12.9 inch TFT-LCD with 2732 x 2048 resolution & capacitive touch screen

Connectivity

* WiFix2 (802.11 a/b/g/n/ac 2×2 MIMO)
* BT v.2.1 + EDR
* GPS
* USB 2.0 (Two USB HOST Type A, one USB mini device)
* HDMI 2.0
* SD Card (Support up to 256GB)

Camera

* Rear: 16 Megapixel, Autofocus with Flashlight
* Front: 5 Megapixel

Sensors

Gravity Accelerometer, Ambient Light Sensor (ALS)

Audio Input/Output

* Microphone
* Dual Speakers
* 3-Band 3.5 mm stereo/standard headset jack

Power and Battery

* 18000mAh 3.8 V lithium-polymer battery
* Charging via 12 V AC/DC power supply with the temperature between 0°C and 45°C

Input Voltage

12V/3A Adapter

Operating Temp.

0 to 50°C (32 to 122°F)

Storage Temperature

-20 to 60°C (-4 to 140°F)

Protocols

PLC J2497, ISO-15765, SAE-J1939, ISO-14229 UDS, SAE-J2411 Single Wire Can (for GMLAN), ISO-11898-2, ISO-11898-3,
SAE-J2819 (TP20), TP16, ISO-9141, ISO-14230, SAE-J2610 (for Chrysler SCI), UART Echo Byte, SAE-J2809 (for Honda Diag-H),
SAE-J2740 (for GM ALDL), SAE-J1567 (CCD BUS), for Ford UBP, for Nissan DDL UART with Clock, for BMW DS2, for BMW DS1, SAE J2819 (VAG KW81),
KW82, SAE J1708, SAE-J1850 PWM (for Ford SCP), SAE-J1850 VPW (for GM Class2)

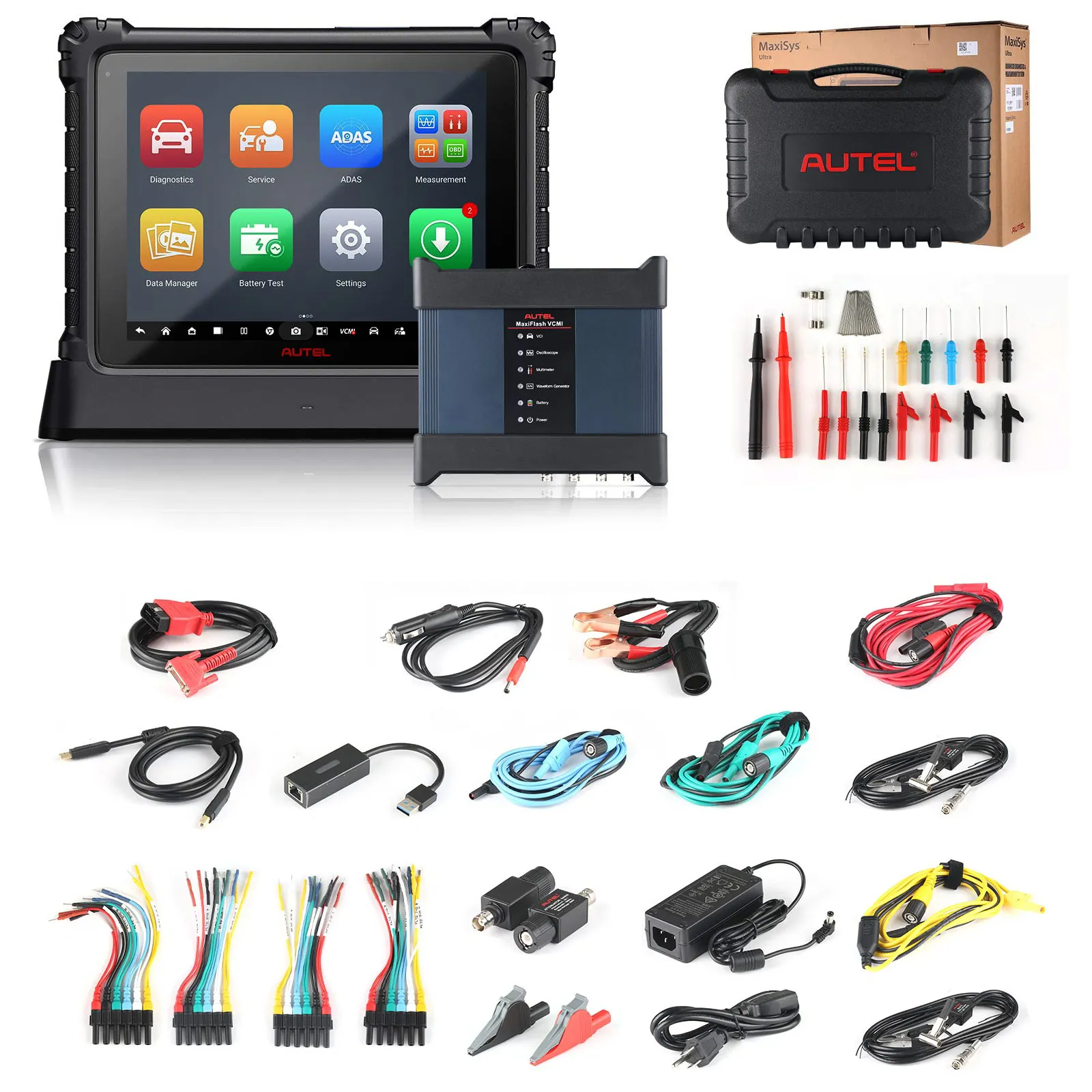

Autel MaxiSys Ultra Package List:

1pc x Main Unit
1pc x MaxiFlash VCMI
1pc x Main Cable V2.0
1pc x USB 2.0 Cable V2
1pc x AC/DC Adapter(12V)
1pc x Cigarette Lighter
2pcs x Light Fuse 6x30mm
1pc x Clipper Cable
4pcs x Scope Test Lead
2pcs x Multimeter Test Lead
2pcs x Secondary Ignition Pickup
2pcs x Attenuator 20:1
1set x Breakout Lead 4×6 PCS
2pcs x Multimeter Probe
1set x Flexible Back-pinning Probe 2×2 PCS
1set x Back-pinning Probe – Red/Green/Blue/Yellow/Black 1×5 PCS
2pcs x Back-pinning Probe Screw
20pcs x Back-pinning Probe Replacement Needle
1set x Small Clip 2×2 PCS
1set x Large Clip 1×2 PCS
1pc x Quick Reference Guide
1pc x Packing List
1pc x Soft Cloth
1pc x Tool Box
1pc x Carrying Case
