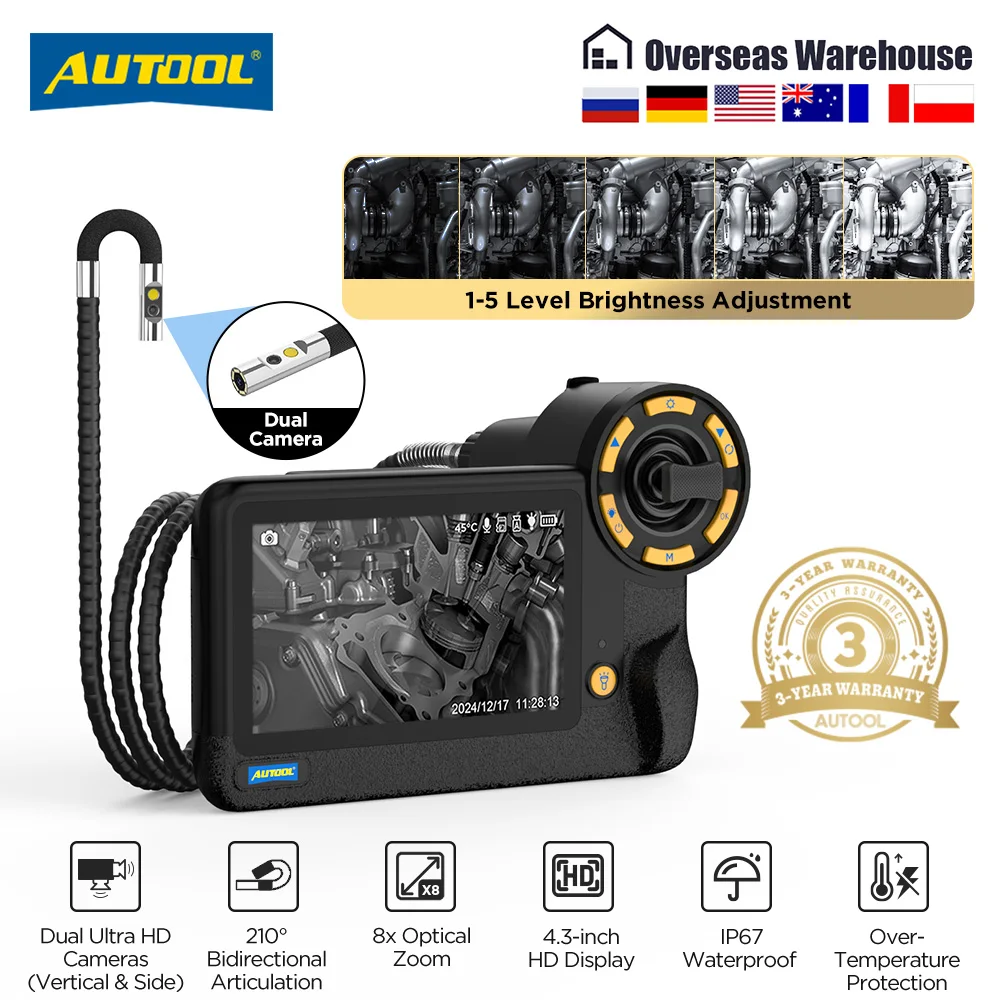

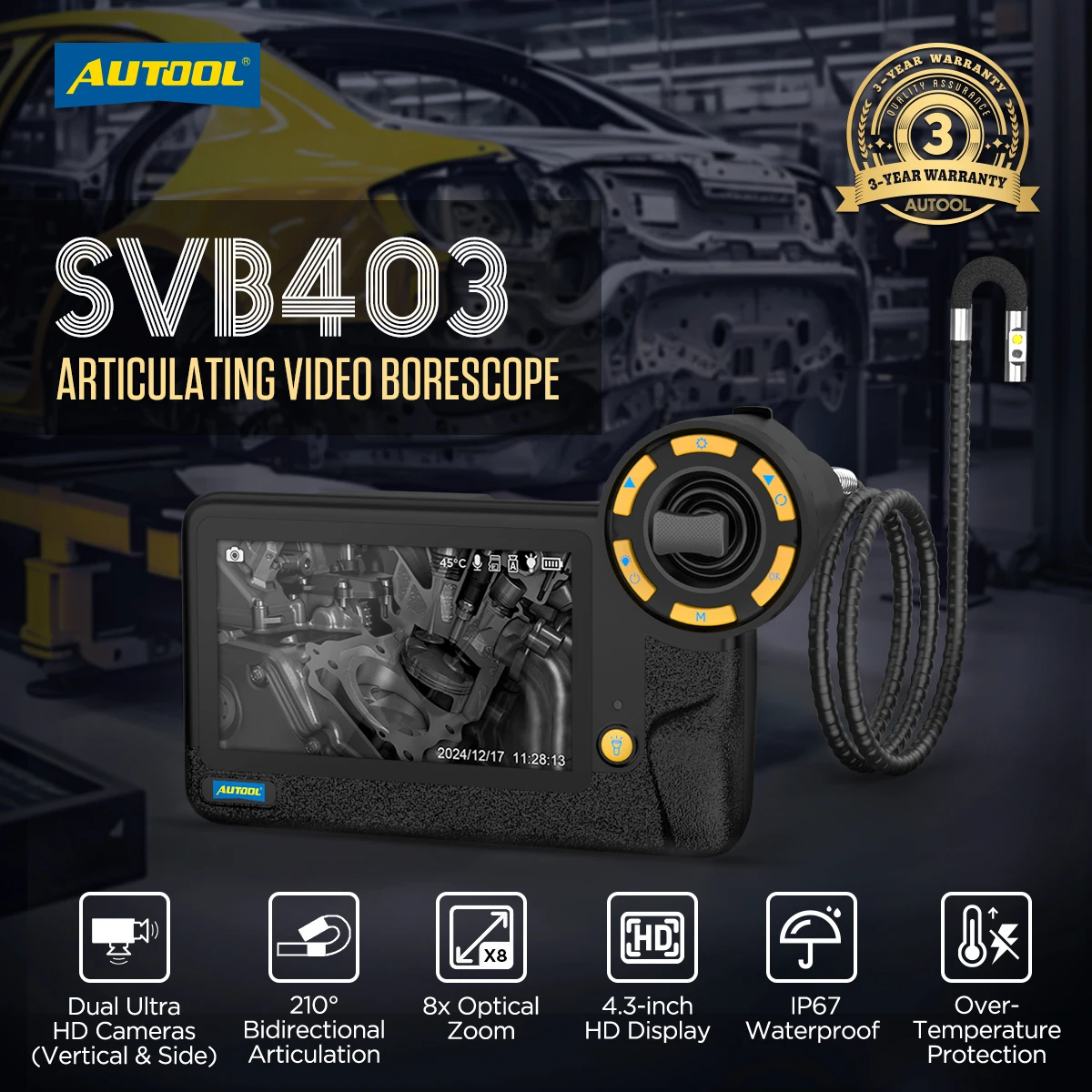

AUTOOL SVB403 1080*720 HD Dual Cars Pipe Camera Video Borescope 4.3-inch 210° Rotation Inspection Camera With 32GB Memroy Card

AUTOOL SVB403 1080*720 HD Dual Cars Pipe Camera
Video Borescope | 4.3-inch LCD | 210° Rotation | 32GB Memory Card

Deskripsi Produk
AUTOOL SVB403 adalah borescope/inspection camera dual-lensa beresolusi tinggi 1080*720 HD, dilengkapi layar LCD 4.3 inci dan kemampuan rotasi kamera hingga 210°. Alat ini didesain untuk memudahkan inspeksi visual pada pipa, mesin kendaraan, saluran, dan area sempit lainnya dengan hasil gambar dan video yang tajam. Dilengkapi kartu memori 32GB, memungkinkan dokumentasi hasil inspeksi dalam jumlah besar untuk analisa maupun laporan teknis.

Fitur Utama
✅ Dual Camera: Lensa ganda untuk sudut pandang depan dan samping, hasil inspeksi lebih detail
✅ HD Resolution: 1080*720 HD, memberikan gambar dan video berkualitas tinggi
✅ 4.3-inch LCD Display: Layar lebar, tampilan hasil inspeksi jelas dan nyaman
✅ 210° Rotation: Kepala kamera bisa diputar hingga 210°, menjangkau area tersembunyi
✅ 32GB Memory Card: Kapasitas penyimpanan besar untuk foto & video hasil inspeksi
✅ Adjustable LED Lights: Lampu LED terang, area gelap tetap terlihat jelas
✅ Waterproof Probe: Kepala kamera tahan air, cocok untuk pipa atau area basah
✅ User Friendly: Desain ergonomis, kontrol mudah, dan portabel
✅ Ideal untuk: Inspeksi otomotif, pipa, saluran, HVAC, mesin industri, dan aplikasi teknik lainnya

Spesifikasi
Model: AUTOOL SVB403
Jenis: Dual Pipe Camera / Video Borescope / Inspection Camera
Resolusi Kamera: 1080*720 HD (dual lens)
Layar: 4.3 inch LCD
Rotasi Kamera: 210°
Penyimpanan: 32GB Memory Card (termasuk)
Lampu: LED adjustable brightness
Panjang Kabel: (cek spesifikasi model, biasanya 1–5 meter)
Waterproof: Ya (cek IP rating pada detail)
Baterai: Rechargeable (cek detail model)
Isi Paket: 1x AUTOOL SVB403, 1x 32GB Memory Card, 1x Charger, 1x Kabel USB, 1x Manual Book

Aplikasi

• Inspeksi pipa, saluran air, dan drainase

• Pemeriksaan ruang mesin kendaraan, mobil, dan motor

• Deteksi kerusakan di area sempit atau tertutup

• Analisa HVAC, elektronik, serta industri manufaktur

• Dokumentasi visual untuk laporan servis dan maintenance

Ringkasan
AUTOOL SVB403 1080*720 HD Dual Cars Pipe Camera menghadirkan kemudahan inspeksi area sempit dan sulit dijangkau dengan hasil visual berkualitas tinggi, rotasi fleksibel, dan penyimpanan besar. Sangat direkomendasikan untuk teknisi otomotif, kontraktor pipa, dan profesional industri yang membutuhkan dokumentasi detail dan efisien.

Kesimpulannya, borescope ini adalah solusi profesional untuk inspeksi—praktis, lengkap, dan hasil visual maksimal di setiap penggunaan.

AUTOOL SVB403 Steering Endoscope Feature

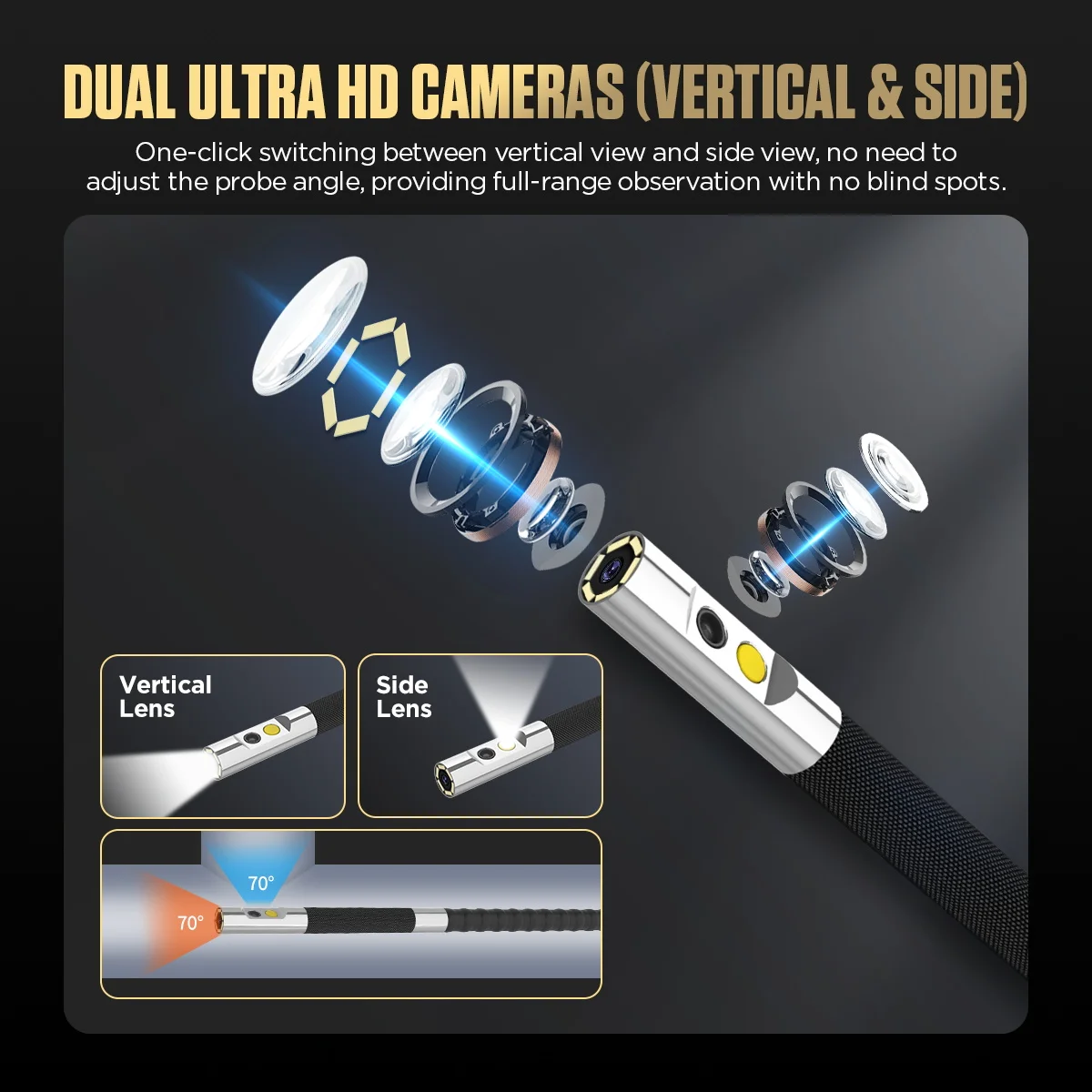

1.[DUAL ULTRA HD CAMERAS (VERTICAL & SIDE)] :
One-click switching between vertical view and side view, no need to adjust the probe angle, providing full-range observation with no blind spots.

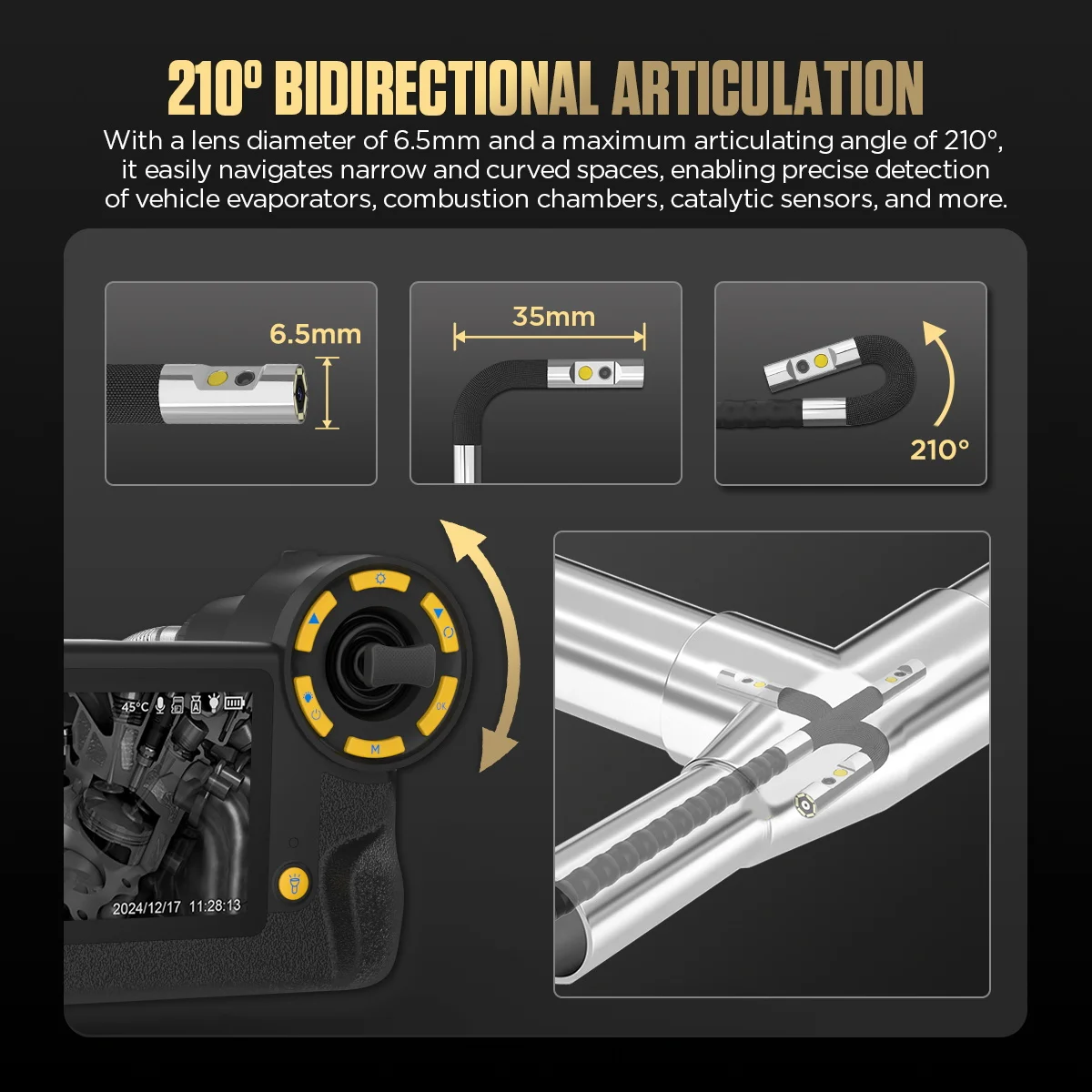

2.[210° BIDIRECTIONAL ARTICULATION]:
With a lens diameter of 6.5mm and a maximum articulating angle of 210°，it easily navigates narrow and curved spaces, enabling precise detection of vehicle evaporators, combustion chambers, catalytic sensors, and more.

3.[4.3-INCH HD DISPLAY]:True color display, adjustable screen brightness,and 8x zoom
for clear detail viewing.

4.[8 LANGUAGE OPTIONS]
English, Simplified Chinese, Japanese, Korean, Russian,French, German, Portuguese.

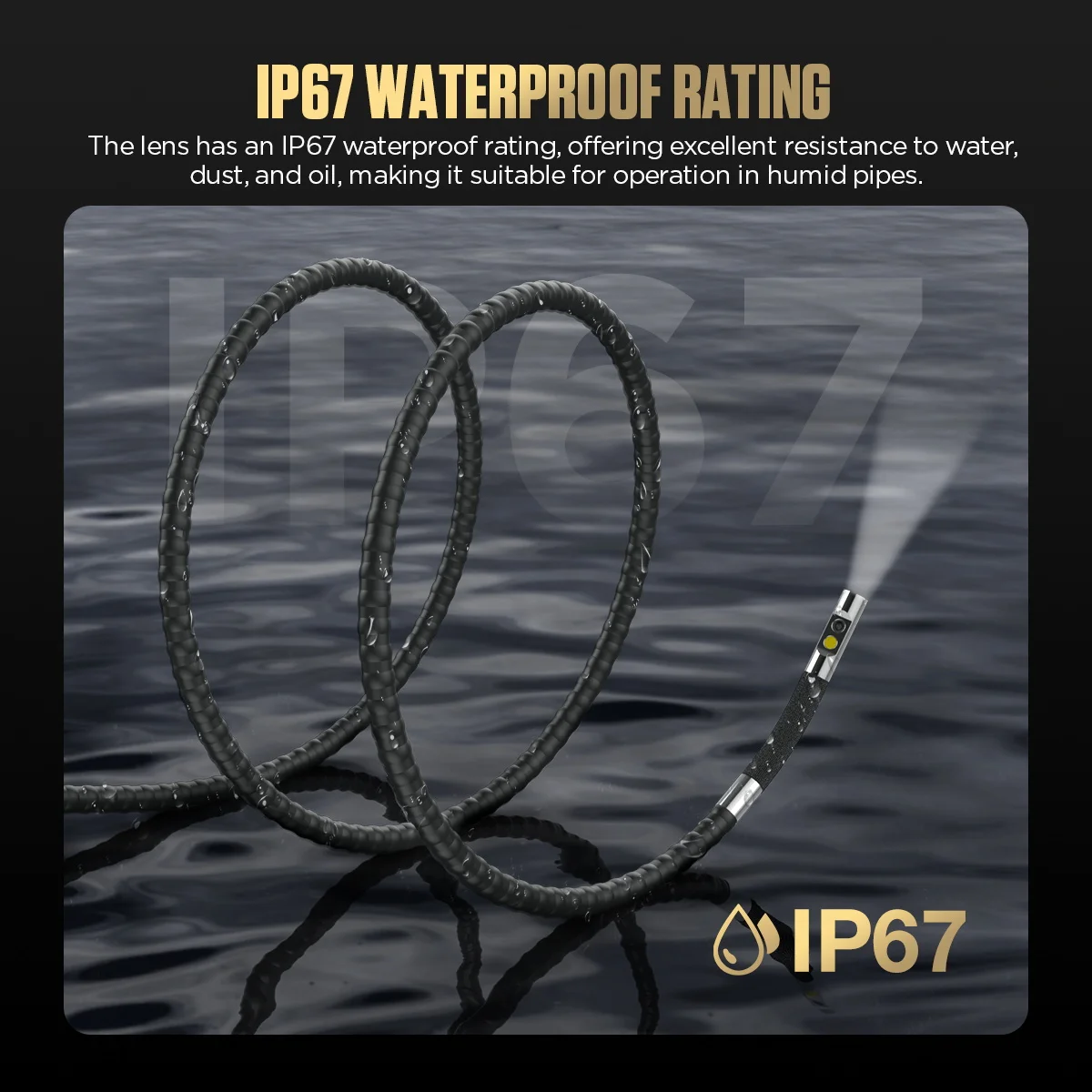

5.[IP67 WATERPROOF RATING]:The lens has an IP67 waterproof rating, offering excellent resistance to water,dust, and oil, making it suitable for operation in humid pipes.

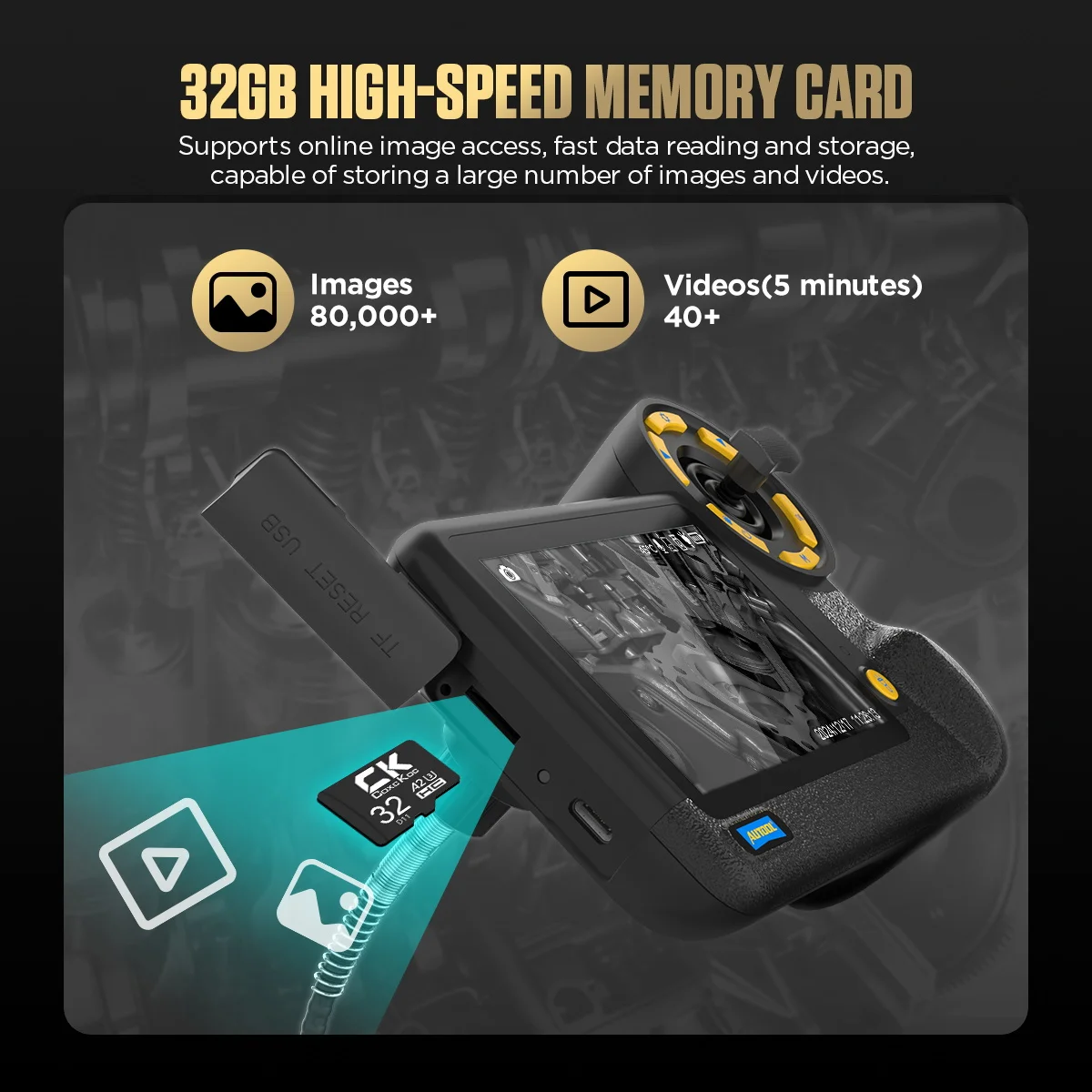

6. [32GB HIGH-SPEED MEMORY CARD]:
Supports online image access, fast data reading and storage,capable of storing a large number of images and videos.

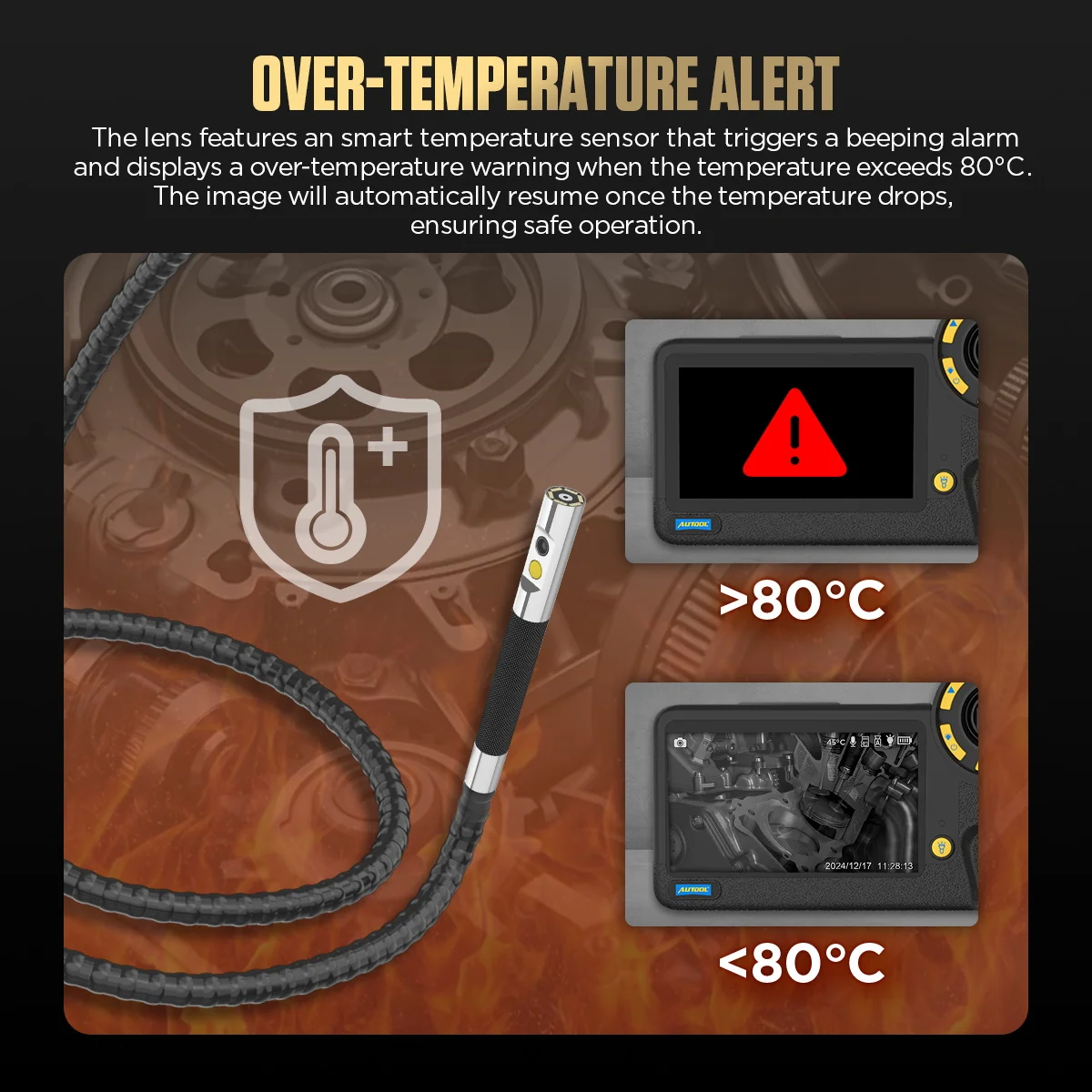

7.[OVER-TEMPERATURE ALERT]:
The lens features an smart temperature sensor that triggers a beeping alarm and displays a over-temperature warning when the temperature exceeds 80°C. The image will automatically resume once the temperature drops,ensuring safe operation.

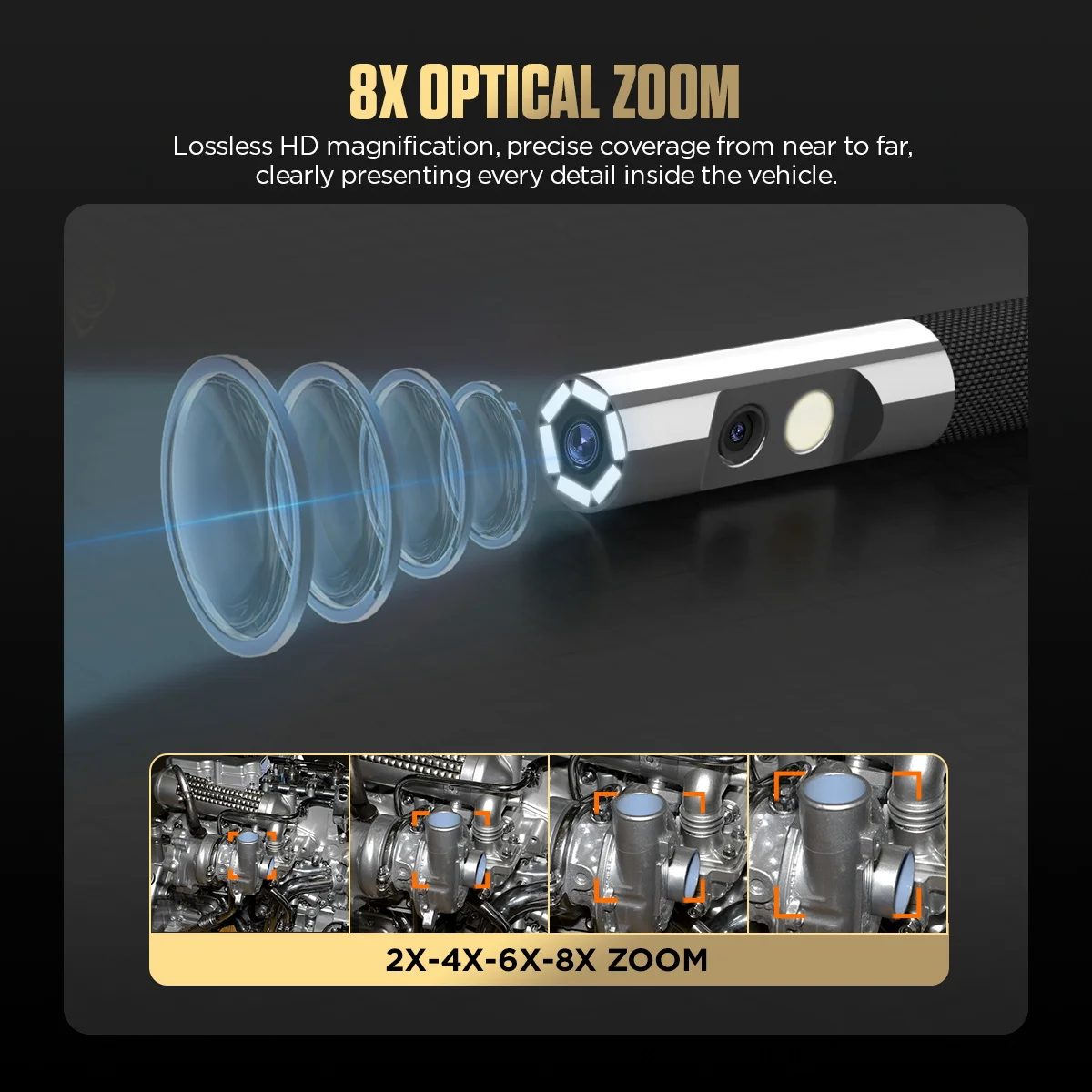

8.[8X OPTICAL ZOOM]:Lossless HD agnification, precise coverage from near to far, clearly presenting every detail inside the vehicle.

9.[MULTIPLE APPLICATION SCENARIOS]：
Suitable for automotive repair, motorcycle repair, mechanical repair,appliance repair,circuit maintenance, pipe repair,air conditioning repair, and more.

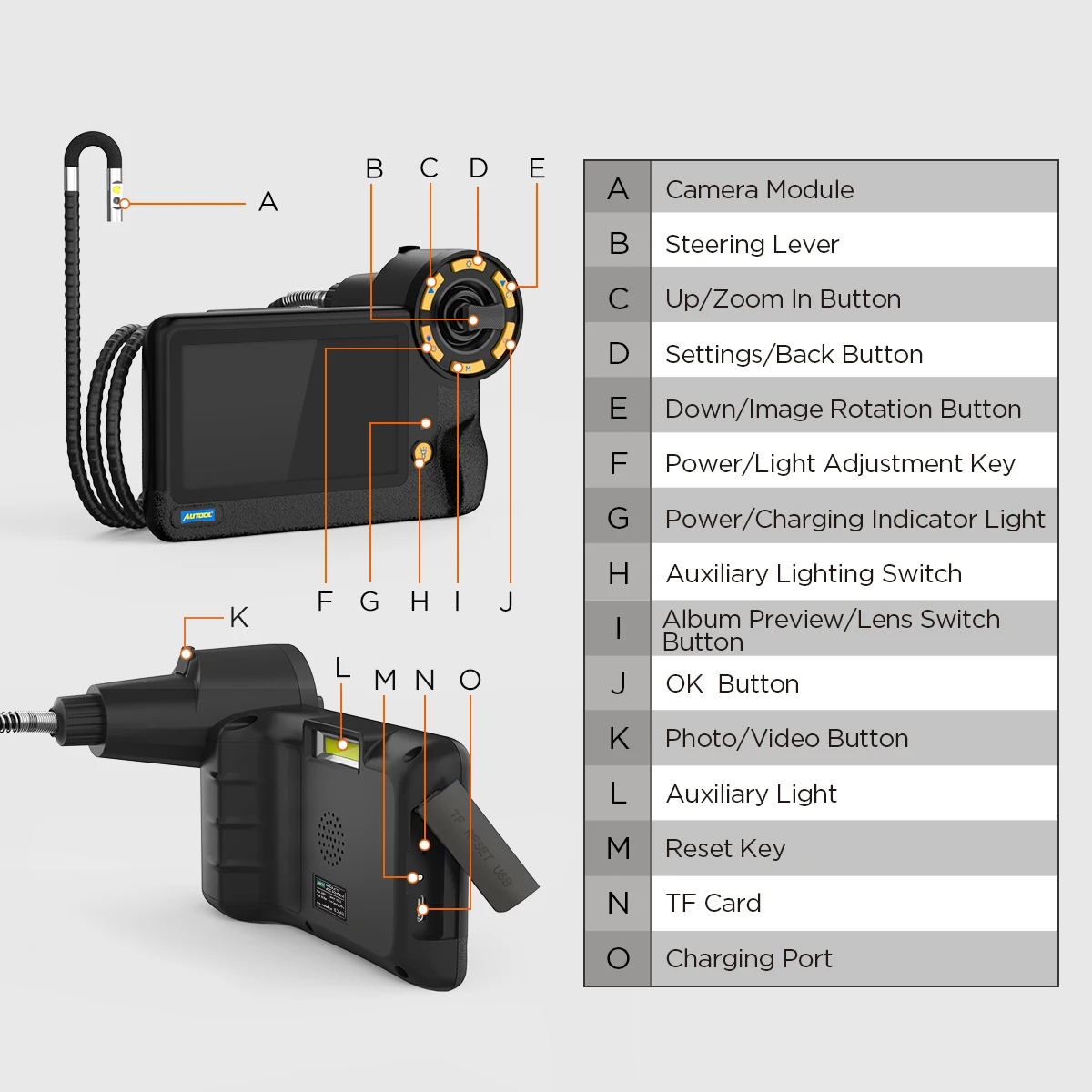

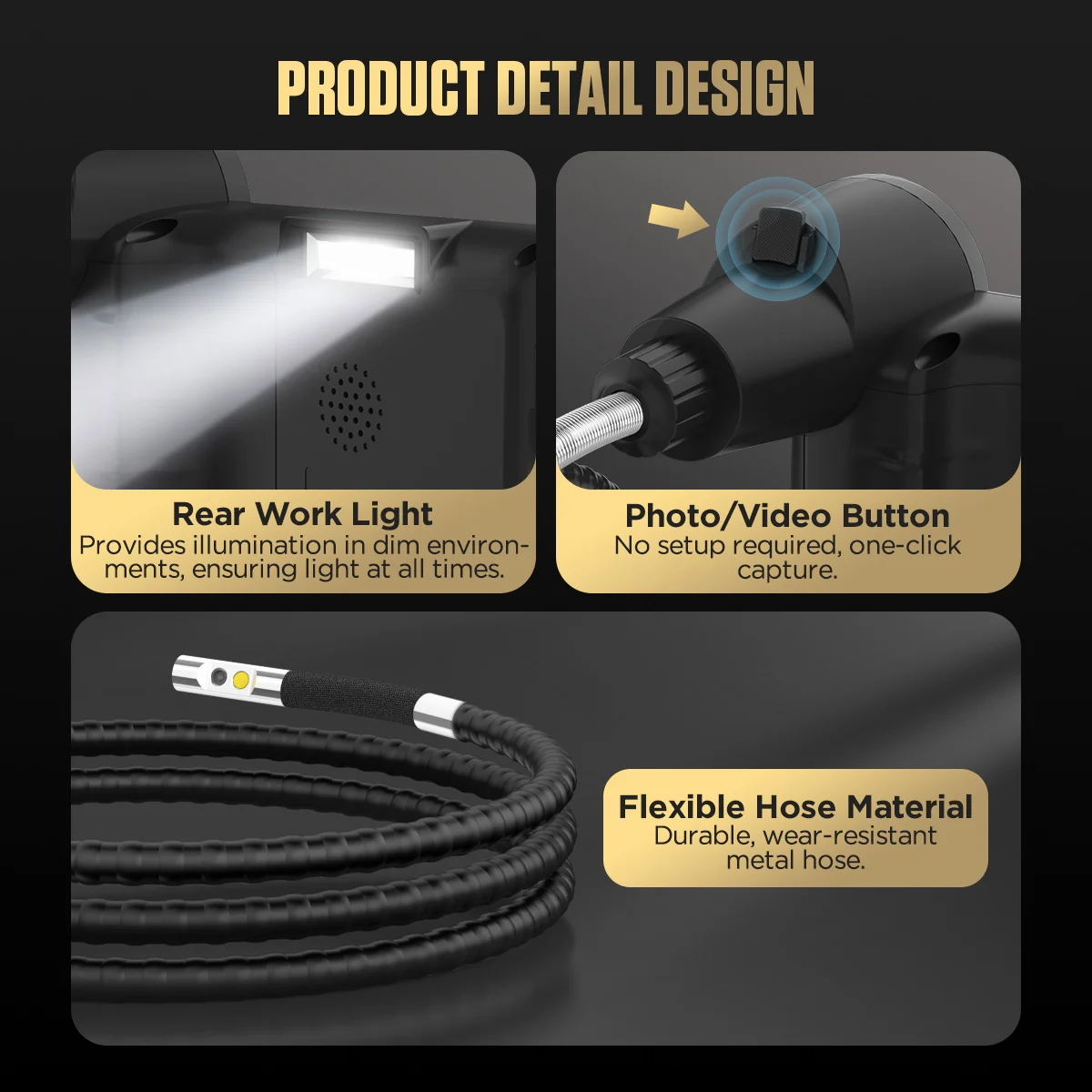

10[PRODUCT DETAIL DESIGN]

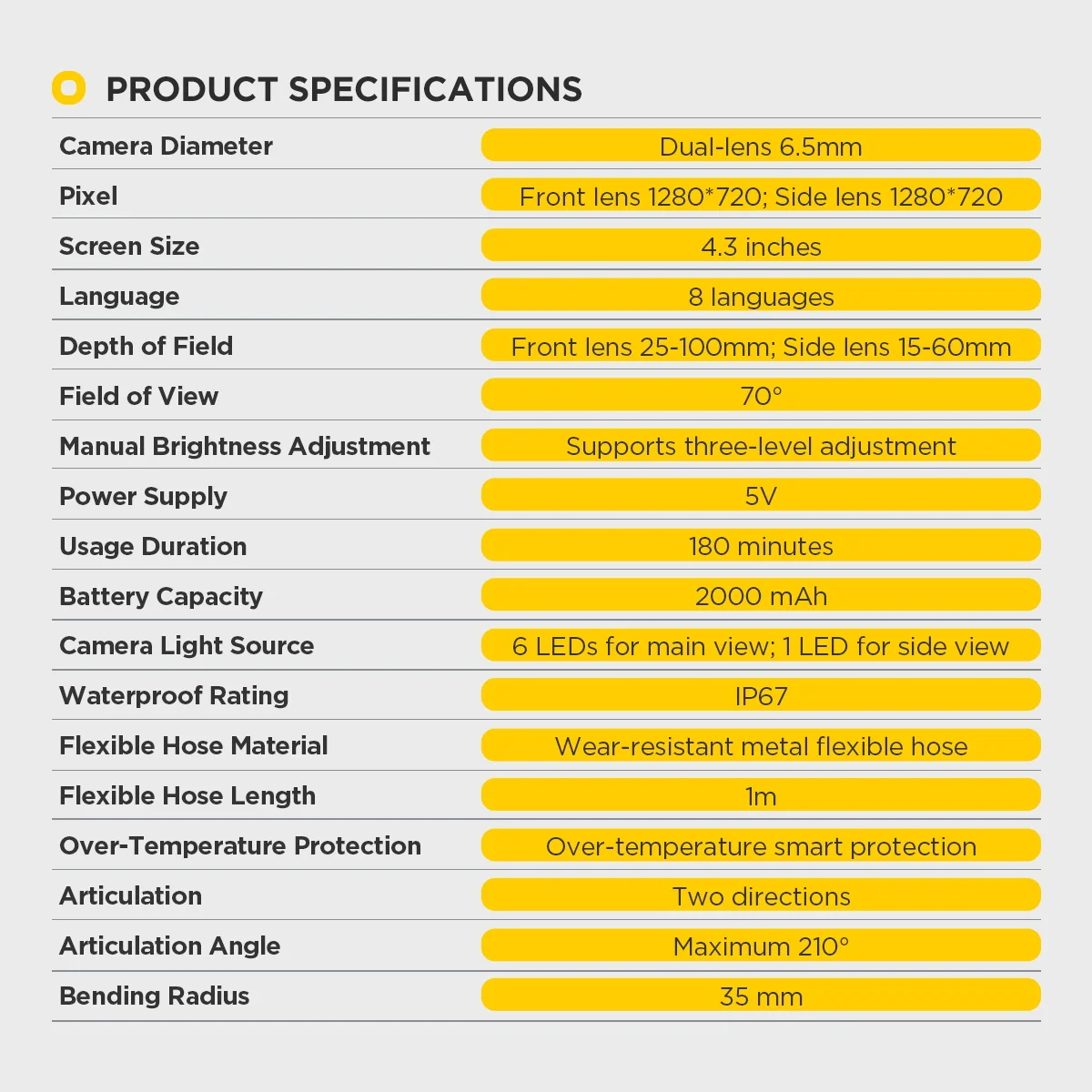

AUTOOL SVB403 Steering Endoscope Structure

Camera Diameter:Dual-lens 6.5mm
Pixel:Front lens 1280*720; Side lens 1280*720
Screen Size :4.3 inches
Language:8 languages
Depth of Field:Front lens 25-100mm; Side lens 15-60mm
Field of View:70°
Manual Brightness Adjustment:Supports three-level adjustment
Power Supply:5V
Usage Duration:180 minutes
Battery Capacity:2000 mAh
Camera Light Source:6 LEDs for main view; 1 LED for side vie
Waterproof Rating:IP67
Flexible Hose Material:Wear-resistant metal flexible hose : Over-Temperature Protection
Flexible Hose Length:1m
Over-Temperature Protection:Over-temperature smart protection
Articulation:Two directions
Articulation Angle:Maximum 210°
Bending Radius:35 mm

Packing List :

1* USB borescope

1*User Manual

1* USB Cable

1* Carrying box
