iPoster BSD Radar Alarm Car DVR Video Recording 2 Channel AHD Left Right Side View Cameras with 10.36″ Rear Mirror Monitor Kit

Description

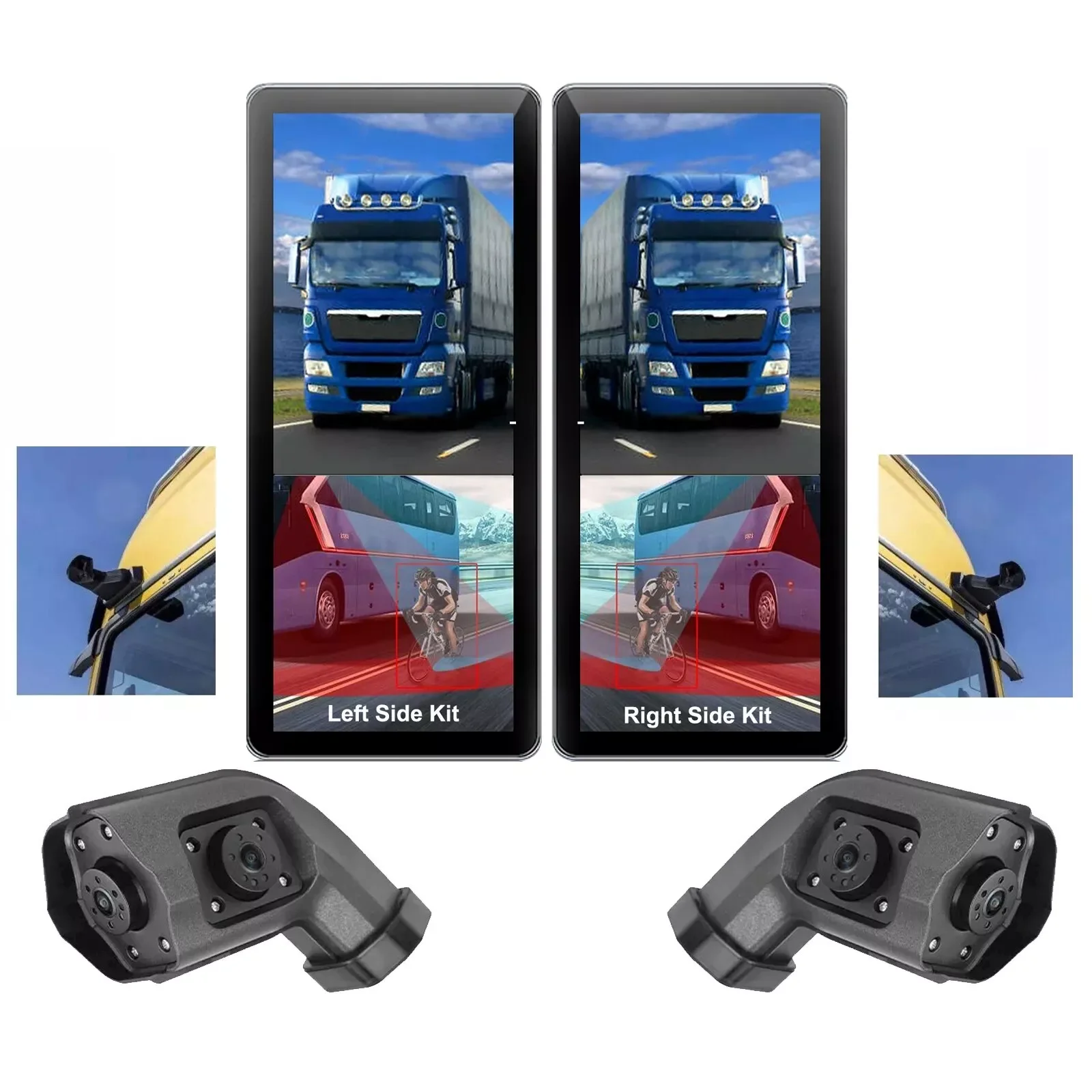

iPoster 10.36 Inch AHD BSD Car Right / Left Side View Vertical Monitor DVR Touch Screen Loop Recording Display with AHD 1080P Dual Head Joint Rear View Cameras & Metal Mini 4PIN connectors Video Cables

For Truck Bus Mirror



Description:



1. 10.36-inch HD IPS screen: Equipped with an 10.36-inch oversized HD IPS display, not only the display area exceeds the traditional rearview mirror, but also provides better color reproduction and broad viewing Angle, whether it is strong daylight or night driving, to ensure a clear and delicate visual experience.

2. Standard dual-channel camera: the system has two built-in cameras, both the blind area and the rear view, to provide good road information for the driver.

3. Night and bad weather advantages of electronic rearview mirror: Compared with traditional optical rearview mirror, this product performs better at night or in bad weather such as rain and snow, with high image clarity, effectively reducing the safety risks caused by blocked vision.

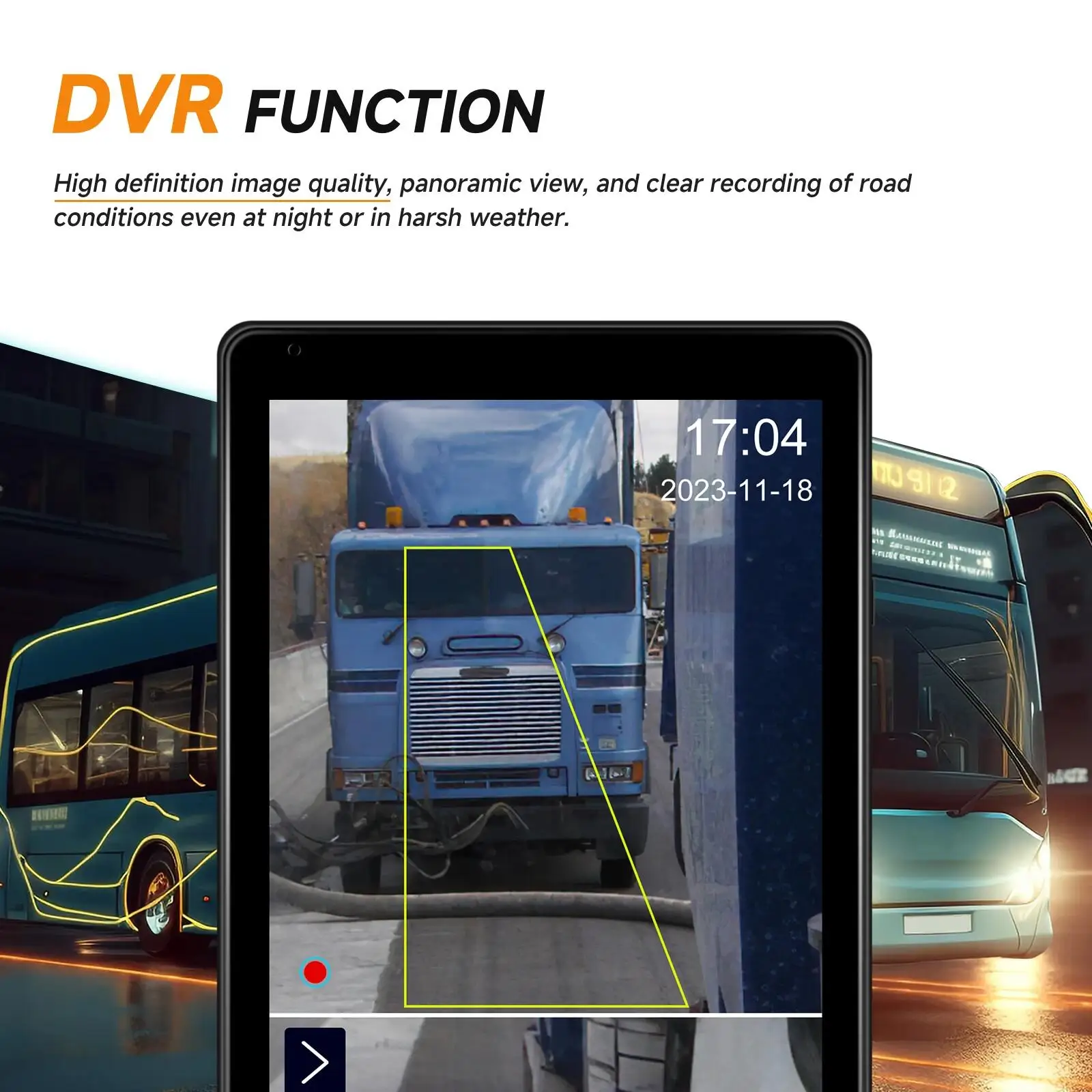

4. Integrated DVR function: built-in driving recorder (DVR) function, automatic cycle recording high-definition video.

5. BSD blind zone detection system: Support BSD blind zone monitoring technology, through warning to remind drivers to pay attention to vehicles in the side and rear blind zone, reduce the risk of parallel collision.

6. Efficient loop recording: Automatically overwrites early videos without manual deletion, ensuring that storage space is always used for the latest driving records, achieving continuous and uninterrupted video recording.

7. Stability and anti-interference of wired transmission: For users who choose wired connections, the system also performs well, providing stable and efficient signal transmission and effectively resisting electromagnetic interference.

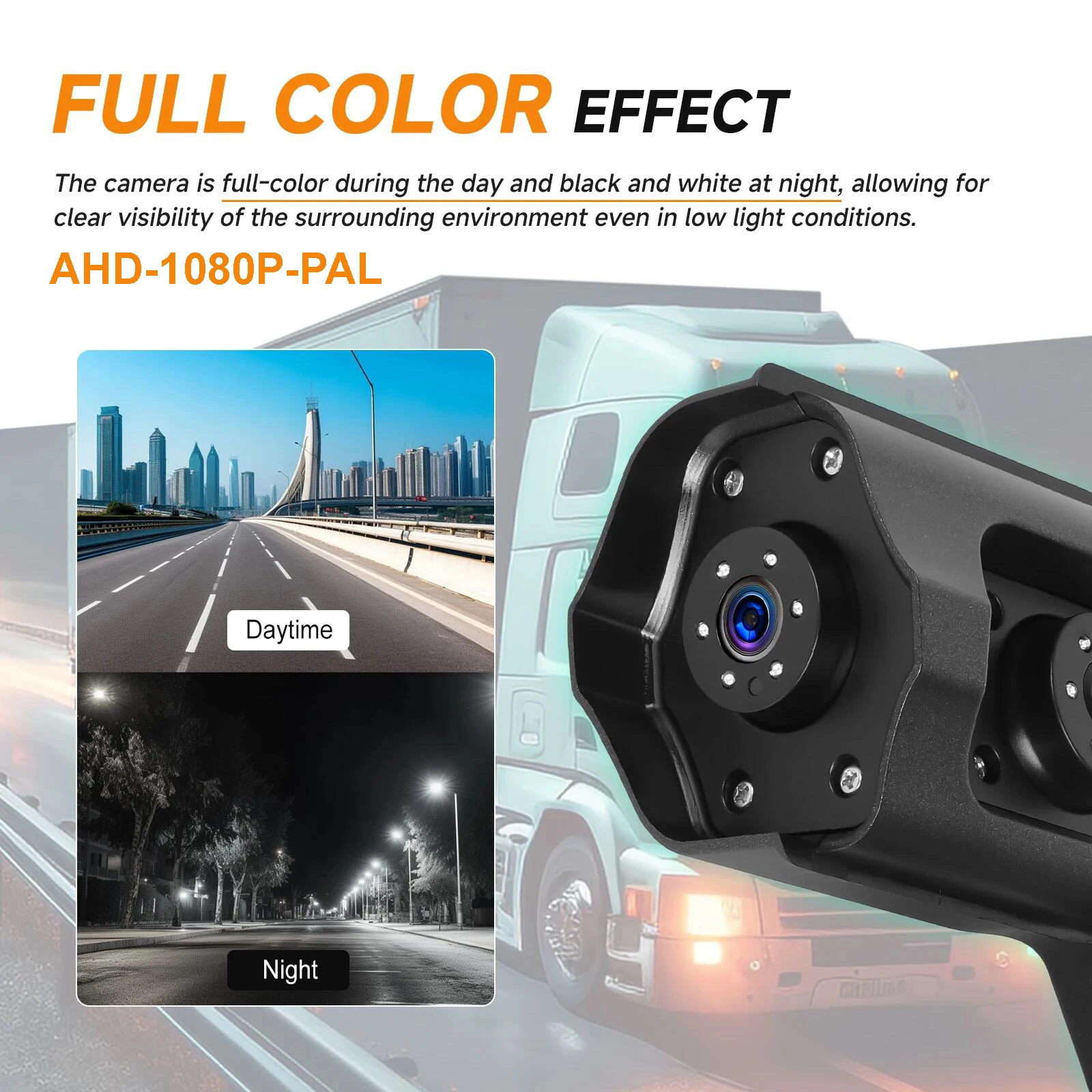

8. All-weather imaging capability: The camera is configured with automatic photosensitive adjustment, showing full-color images during the day, switching to black and white mode at night, enhancing the imaging effect in low-light environments, ensuring that the surrounding environment can be clearly observed under low light.

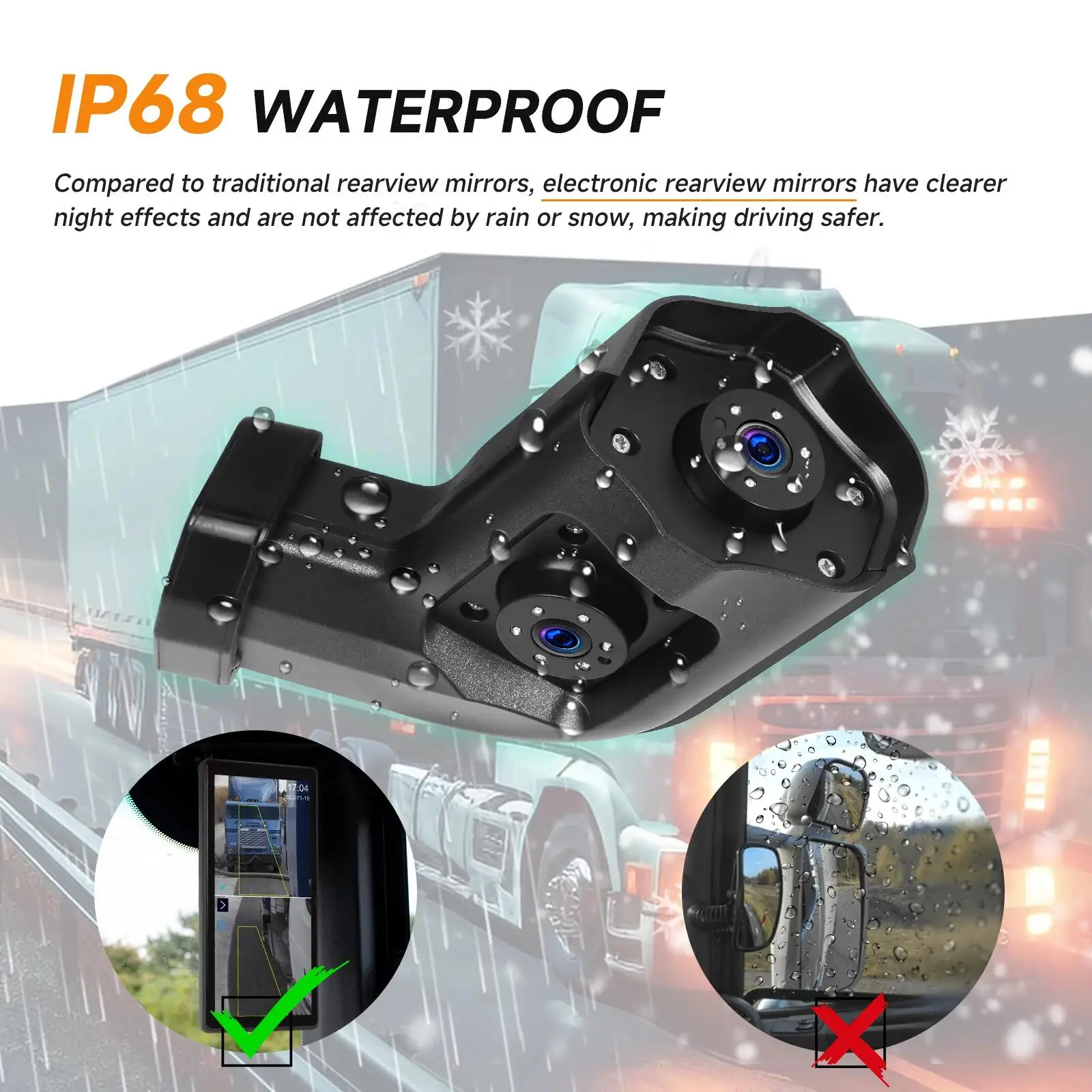

9. IP68 top waterproof rating: The camera component reaches IP68 waterproof and dustproof rating, whether it is rainstorm or sandstorm, it can ensure the internal components are safe and durable.

10. Ultra-wide Angle lens: the camera has a wide viewing Angle, reducing the blind area, improving the driving field of view, and ensuring driving safety.

11. Intelligent touch control: Support touch screen control, finger touch can complete the function Settings, improve the convenience and modern operation, make the driving process more smooth and unobstructed.

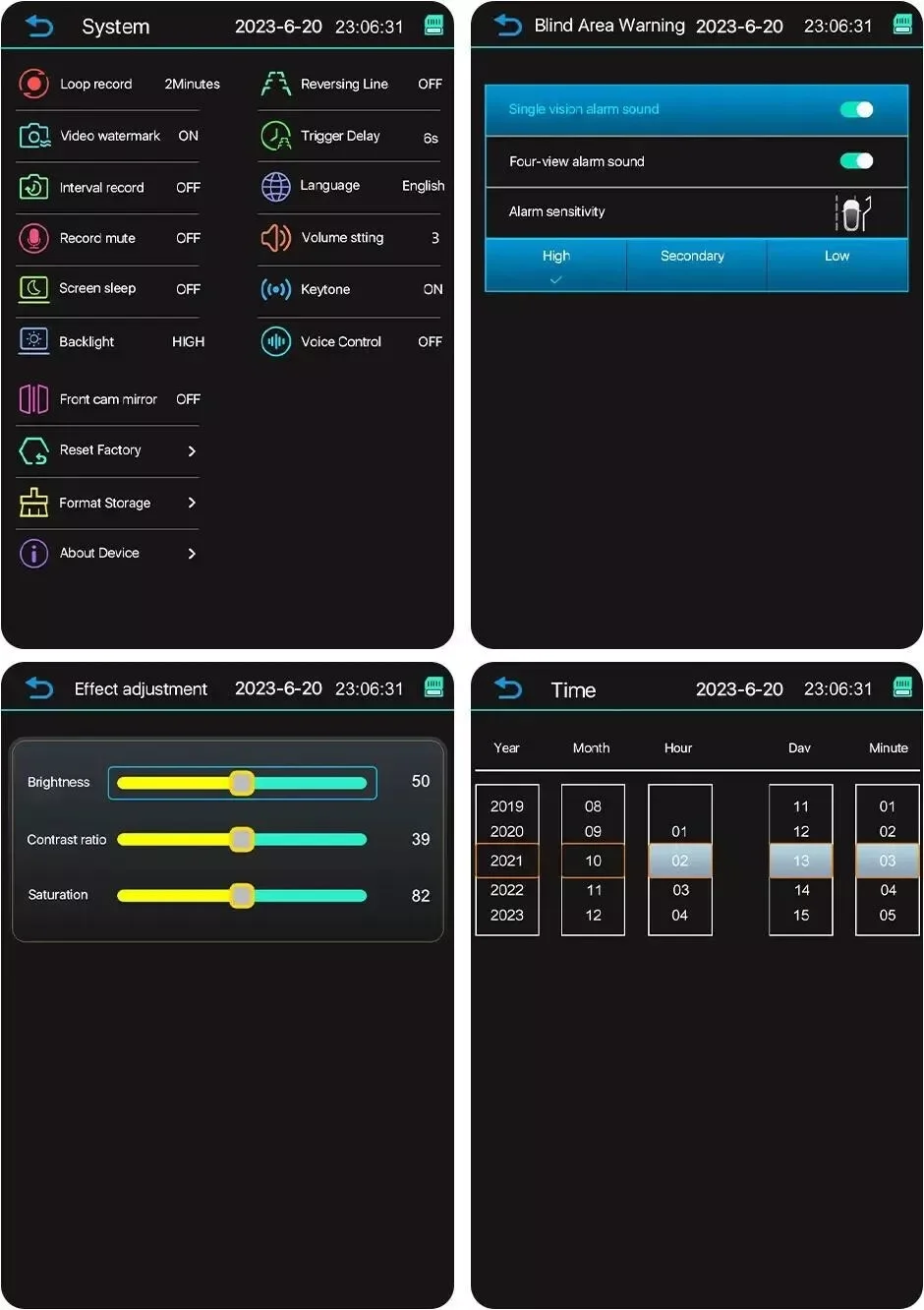

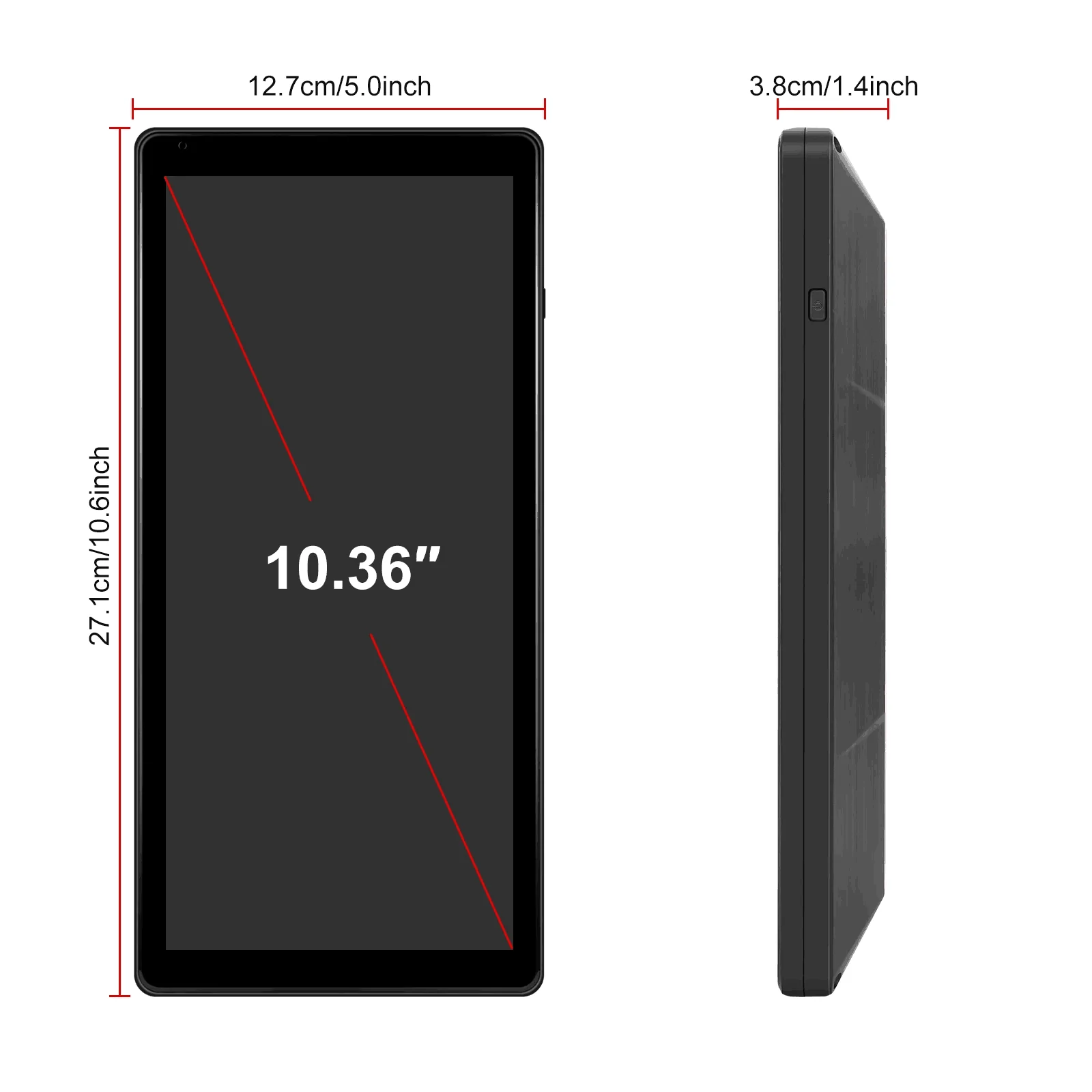

Monitor Specification:



Screen resolution :720*1600 IPS screen

Power supply voltage: DC7V-32V

Power :7W

Built-in buzz: 2W

DVR function: Supported

BSD function: Supported

Video Playback format: TS format

Video compression format: H.264

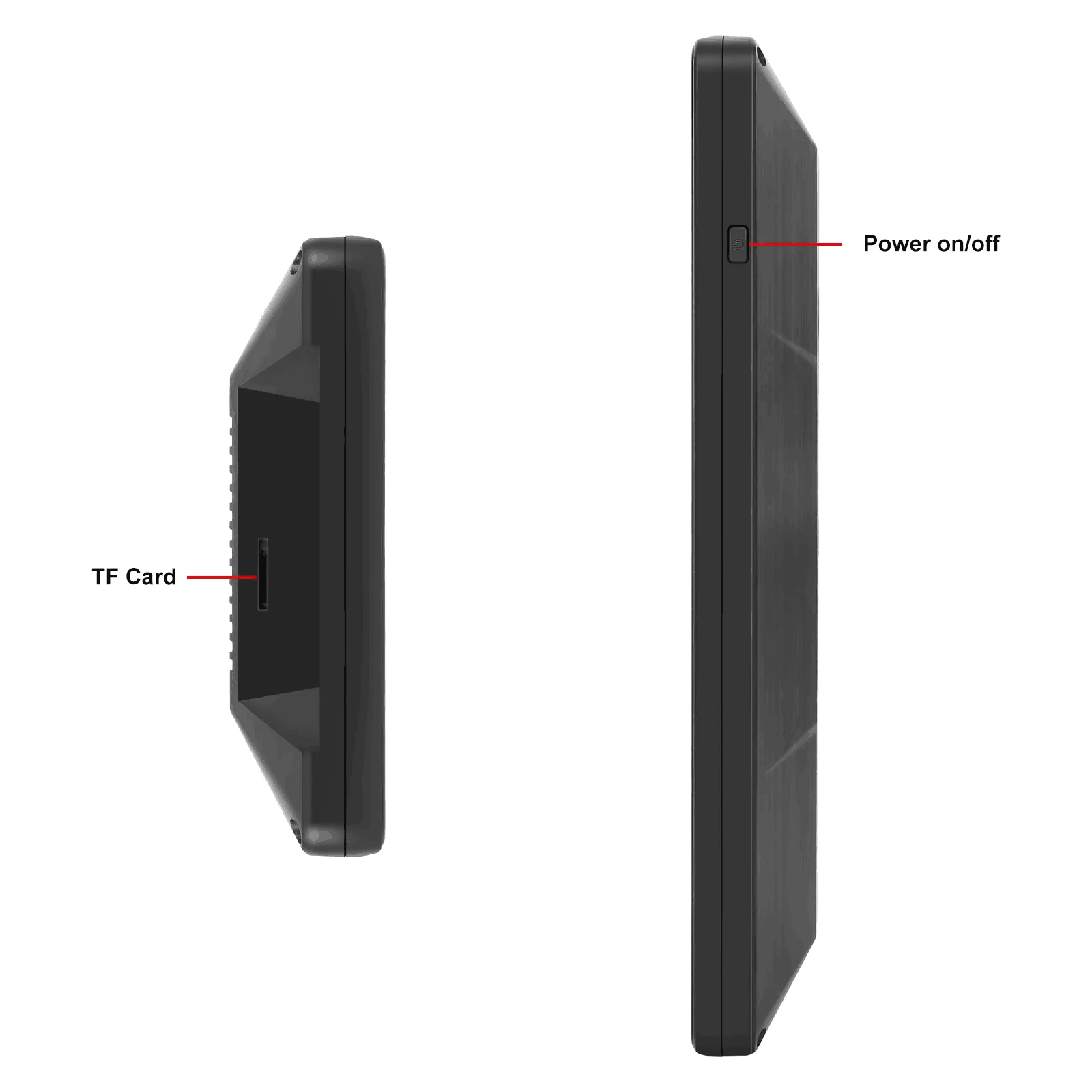

TF card: Supports card recording

Loop recording: 1/2 minute

Video watermarking: switch

Time-lapse video: Off /1/12/24 hours

Mute recording: Switch

Screen sleep: Off /10/30/60 seconds

Screen brightness: Low/medium/high

Split mode: 7:3/6:4/5:5

Languages: Chinese, English, Japanese and Korean

Volume: 0/1/2/3/4

Key tone: switch

Voice control: Switch

Front view mirror: switch

Restore factory defaults: Supported

Formatting: Supported

Software version View: Supported

Time setting: Supported

Screen adjustment: Brightness/saturation/contrast

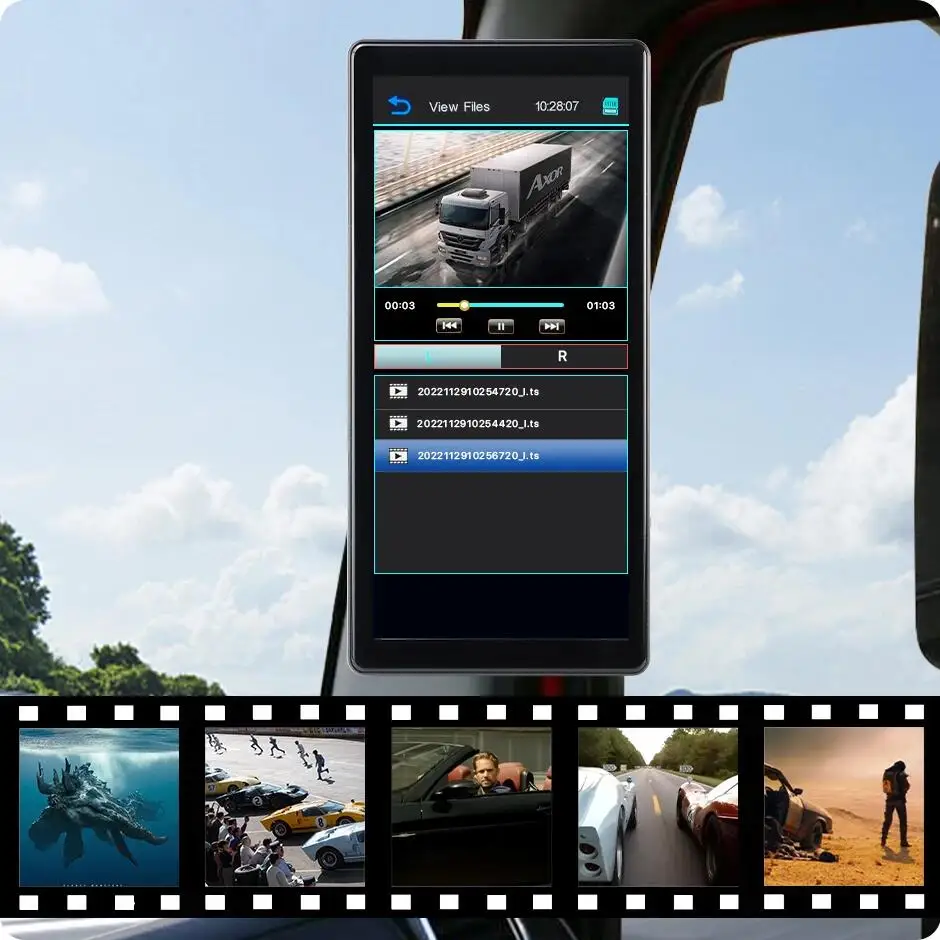

Video playback: Supported

Camera Specification:



Standards: PAL

Video Output: 1080P

Night Vision Image: Automatic Control

Waterproof：IP68

Night Vision: Yes, it has 6Pcs Infrared Leds for night vision, at least 10m at night.

Operation Temperature:-22℉~176℉

Voltage: 12V

Anti-shock: Yes

Connector: Metal Mini 4PIN Female connector

Main Features:



Suit for all 9V-36V Voltage vehicles:

Support 9V-36V wide Voltage, really an ideal system for car surveillance, suitable for small trucks, buses, pickip trucks, work cars, large truck,etc.

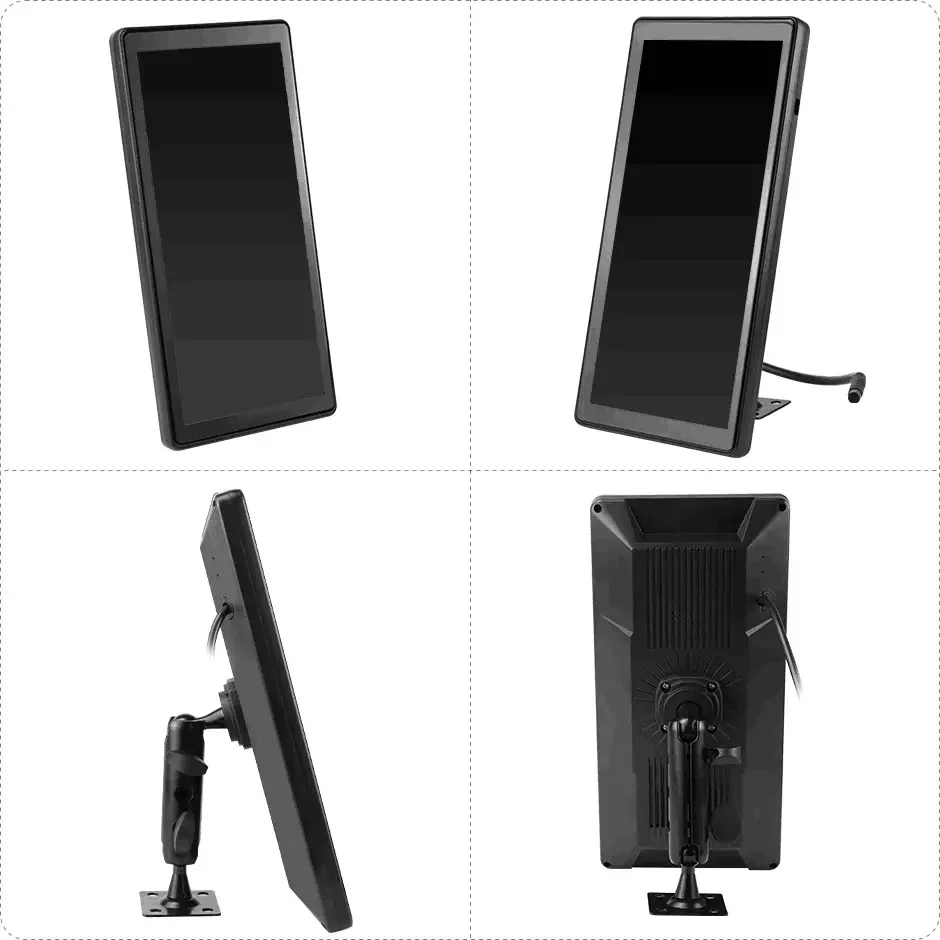

10.36 Inch Monitor Supports 2-Split Display And DVR Recording Function:

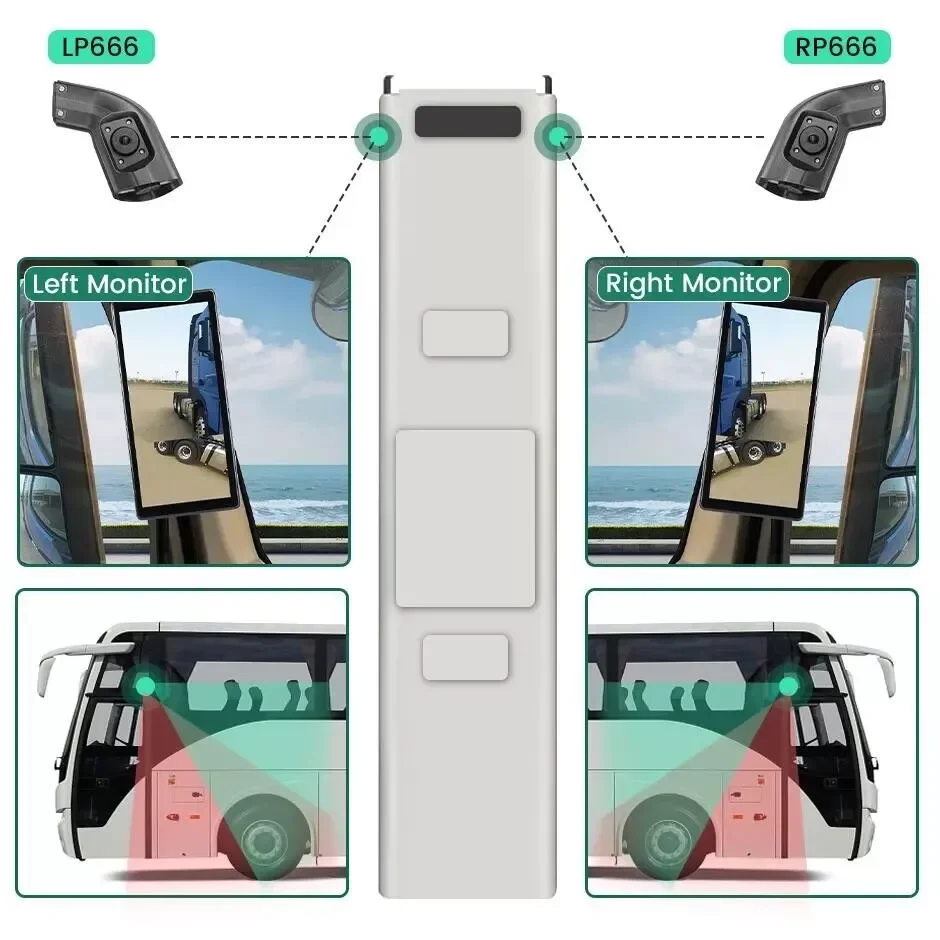

In order to retain the visual habits of traditional rearviewmirrors, a 10.36-inch monitor is selected to split the display image, which can easily restore the traditional rearview mirror. The upper large square mirror shows the distant view of the near car, and the lower small square mirror shows the field of view of the supplementary blind mirror. Two-in-one that combines in-vehicle DVR and monitor, a major upgrade of invehicle monitor! It can record and replay driving videos.



Traditional Rearview Mirror Replacement:

Newest 10.36 inches Electronic rearview mirror systems, featuring high resolution image, wide dynamic range (WDR), 3D noise reduction (DNR), high light compensation (HLC), super lolux, rainproof film technology, etc., it is designed for replacing the traditional rearview mirror, which can perfectly solve blind spot problems, especially A-pillar blind spot in various driving situations, such as turning, reversing, parking, etc. and greatly improve the driver’s visibility.



Electronic Rearview Mirrors Can Solve Various Problems Faced By Traditional Rearview Mirrors



1. Solve Blind Zone Problem：IP-ARM-CAM side view mirror blind zone assist system is particularly effective in eliminating driving blind zones. Traditional mirrors often result in blind spots due to limited viewing angles, especially in large vehicles such as truck driving. The IP-ARM-CAM system presents a wide-angle view through the high-definition display, providing a wider field of view, effectively solving the problem of blind spots in the field of view of traditional mirrors, and providing a higher level of safety for drivers when changing lanes or reversing.



2. Solve Low Light Problem：When driving at night, the IP-ARM-CAM side view mirror blind zone assist system, with its bright and clear display advantage, ensures that drivers in dimly lit environments are able to see their surroundings clearly without being disturbed by reflections or strong backlighting, greatly enhancing the safety of night driving.



3. Solve Glare Problem：High definition resoluion enables driver to see people and objectives clearly at night in dark environment; Clear without dazzling image in strong backlights.



4. Solve Bad Weather Problem：When driving at night or in foggy conditions, the view from conventional mirrors is often restricted. The IP-ARM-CAM side mirror blind zone assist provides a clear view in these conditions through its 12.3-inch high-definition display, ensuring that drivers are able to safely observe what is happening to the side and rear of the vehicle, making up for the shortcomings of the restricted view of traditional mirrors, greatly enhancing driving safety.



5. Smart HD Reversing Video Automatic Full Screen of Signal Trigger

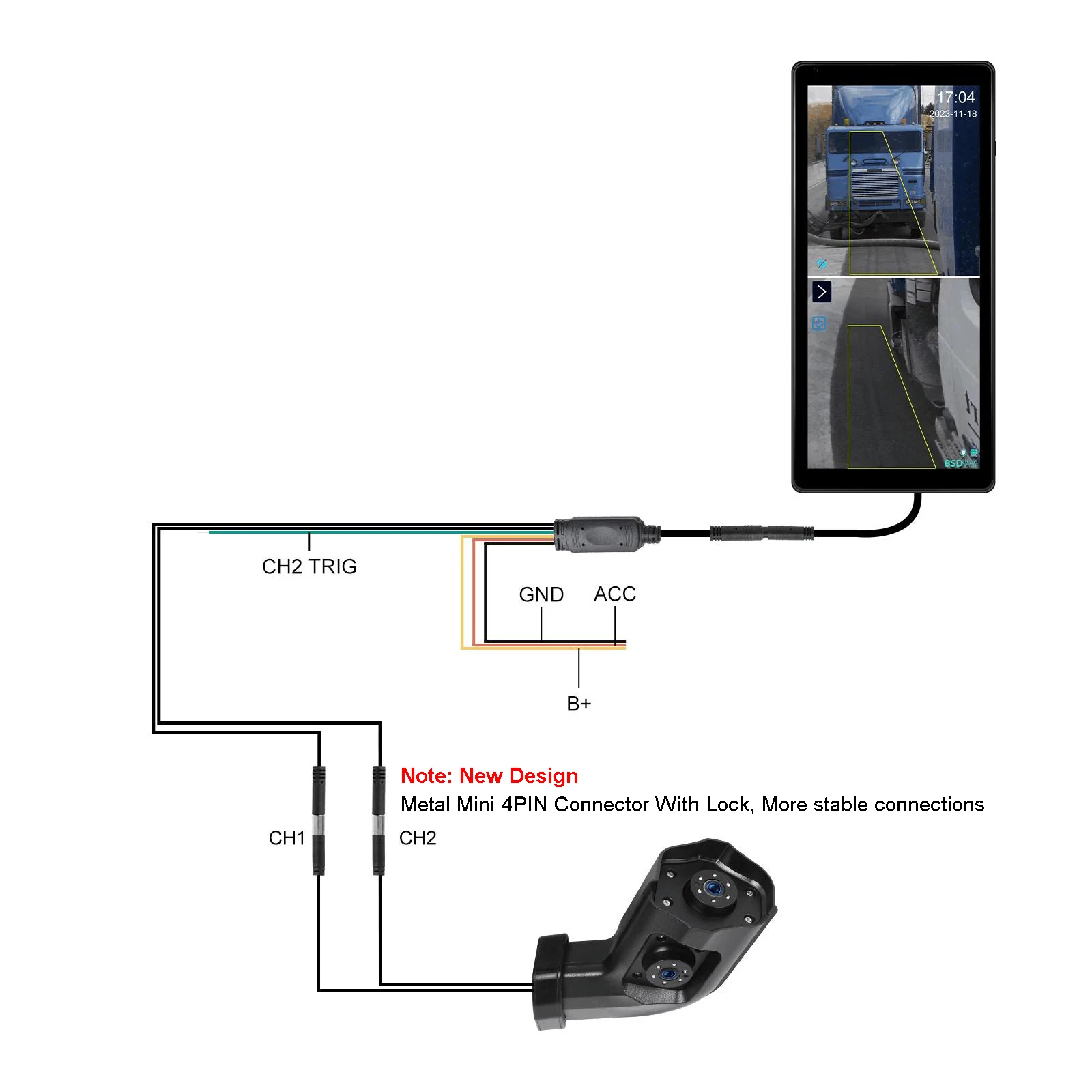

Connect with trigger wire, the split image will automatically switch over to the corresponding camera as an independent image when detecting the signal of turning left/right or reversing.



6. Advanced H.265 Video Compression

H.265 (HEVC) doubles the coding efficiency compared with its predecessor H.264. That means it saves more storage space, store more videos and the videos quality are smoother.



7. 1080P Starlight Full Color Night Vision

Use starlight lens to clearly record driving details, F1.8 large aperture, day and night imaging is clear and delicate, and can capture details in low-light environments.

Driving at night without street lights, traditional rearview mirrors can hardly see the road surface, seriously affecting the normal driving. Starlight night vision ensures the clear, colorful, real-time and continuous images can be achieved under extremely low light conditions.

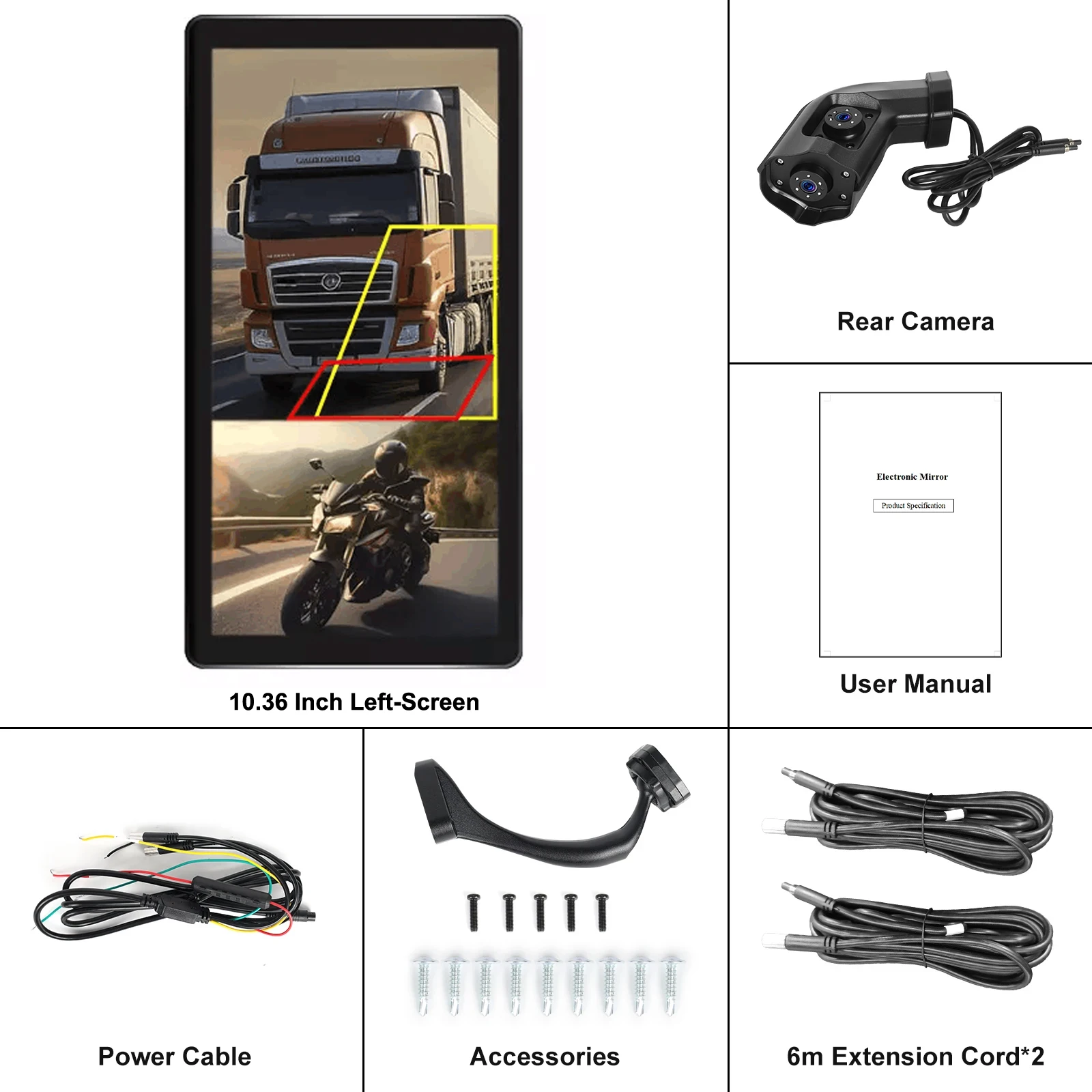

Package included：



1x 10.36 Inch Touch Screen Left Side BSD Monitor with DVR function

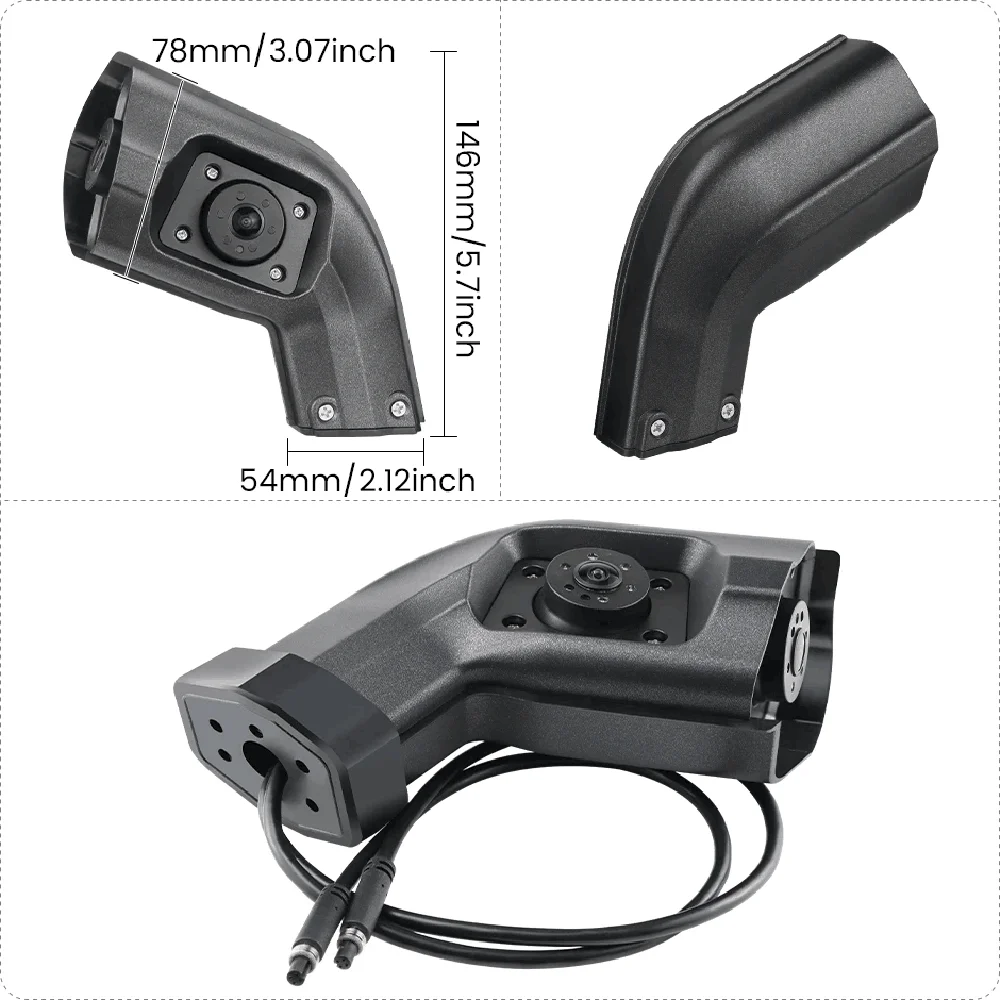

1x AHD 1080P Dual Head Cameras

2x 6m Video line

1x Power Harness

1x Set of Screws

1x Bracker

1x User Manual
